SmallRig Swivel And Tilt Adjustable Monitor Mount With ARRI-Style Mount 2903

SmallRig Swivel and Tilt Adjustable Monitor Mount with ARRI-Style Mount 2903

Key Features:
1. Supports 5” and 7” Onboard Monitor up to 1.5kg.

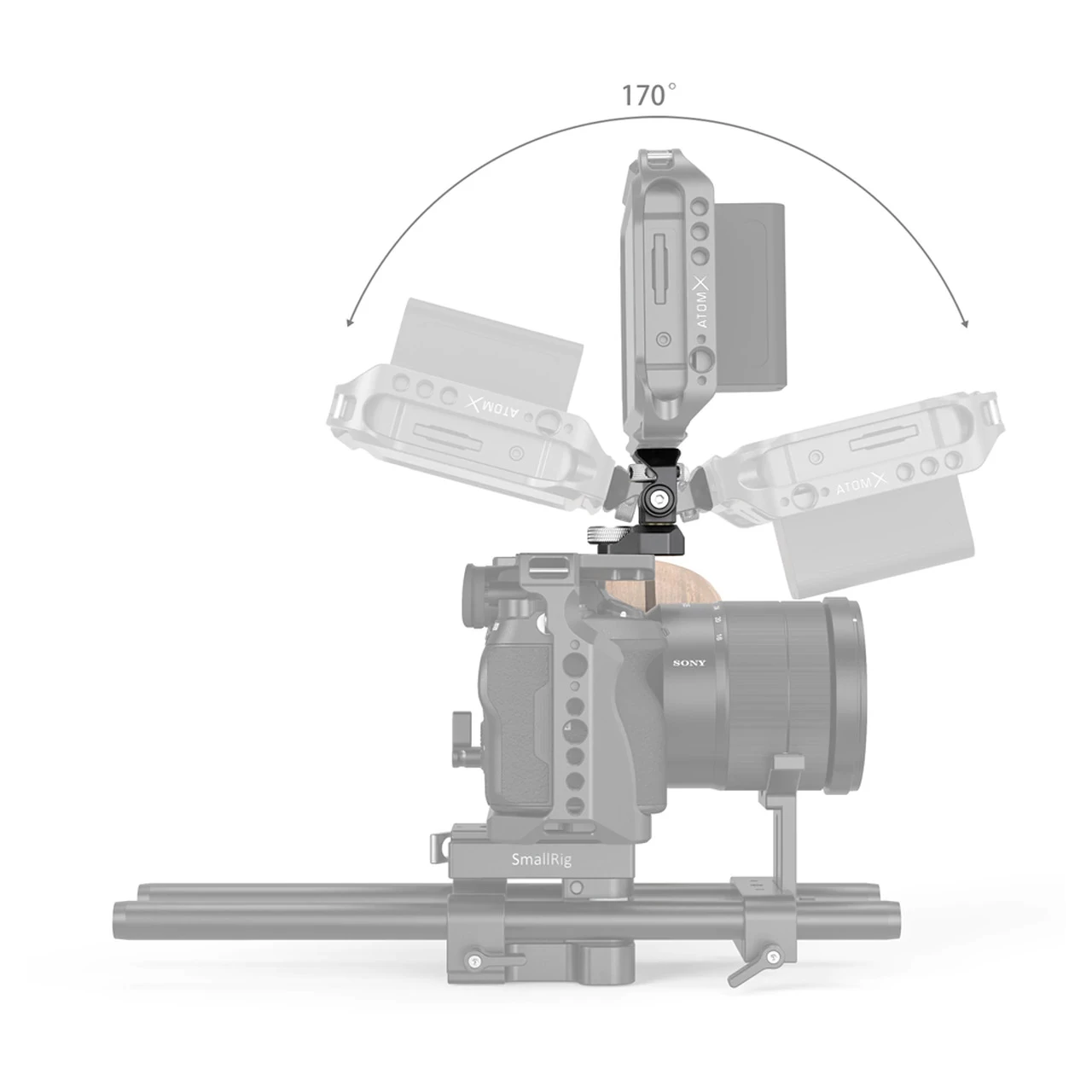

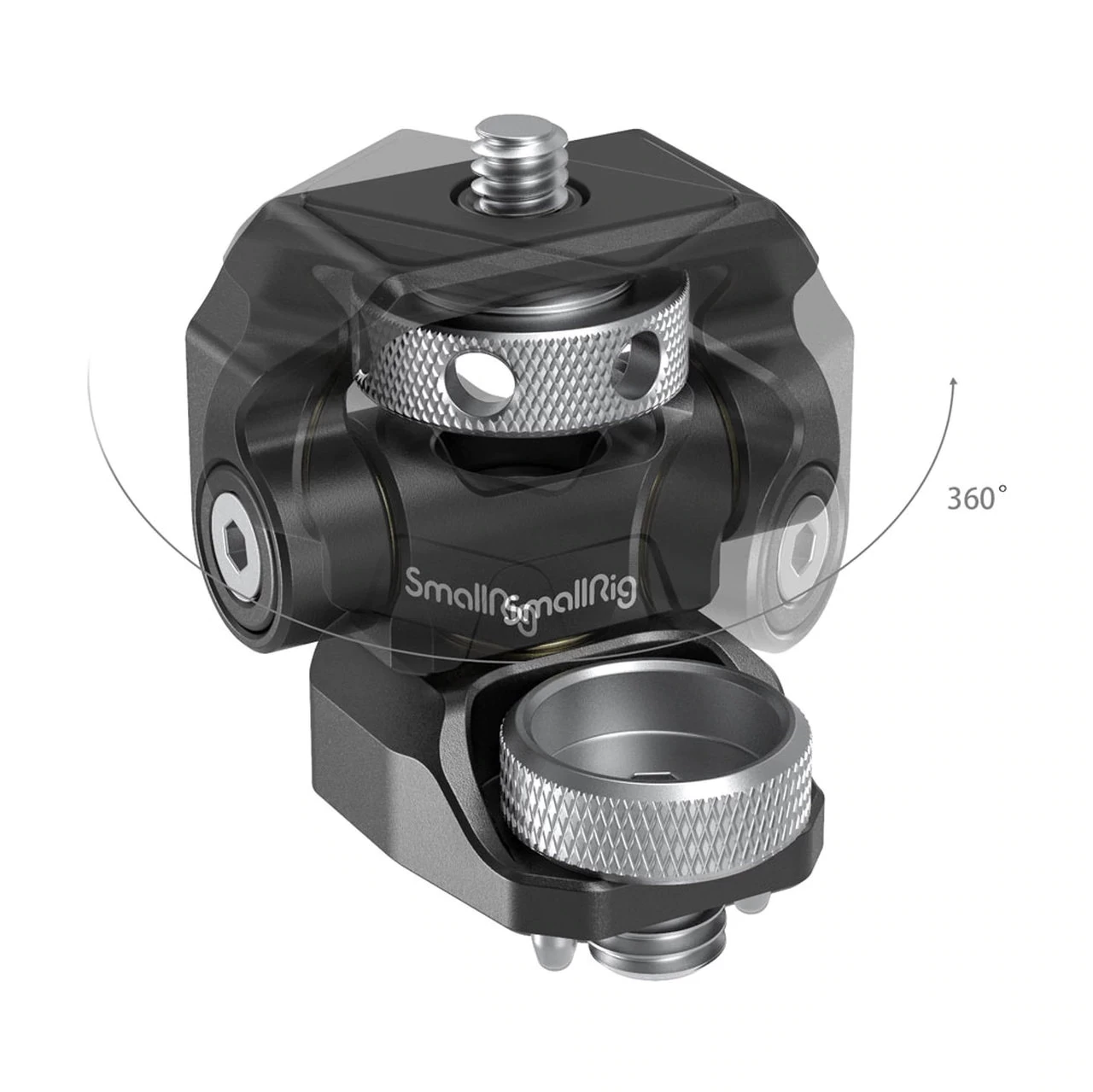

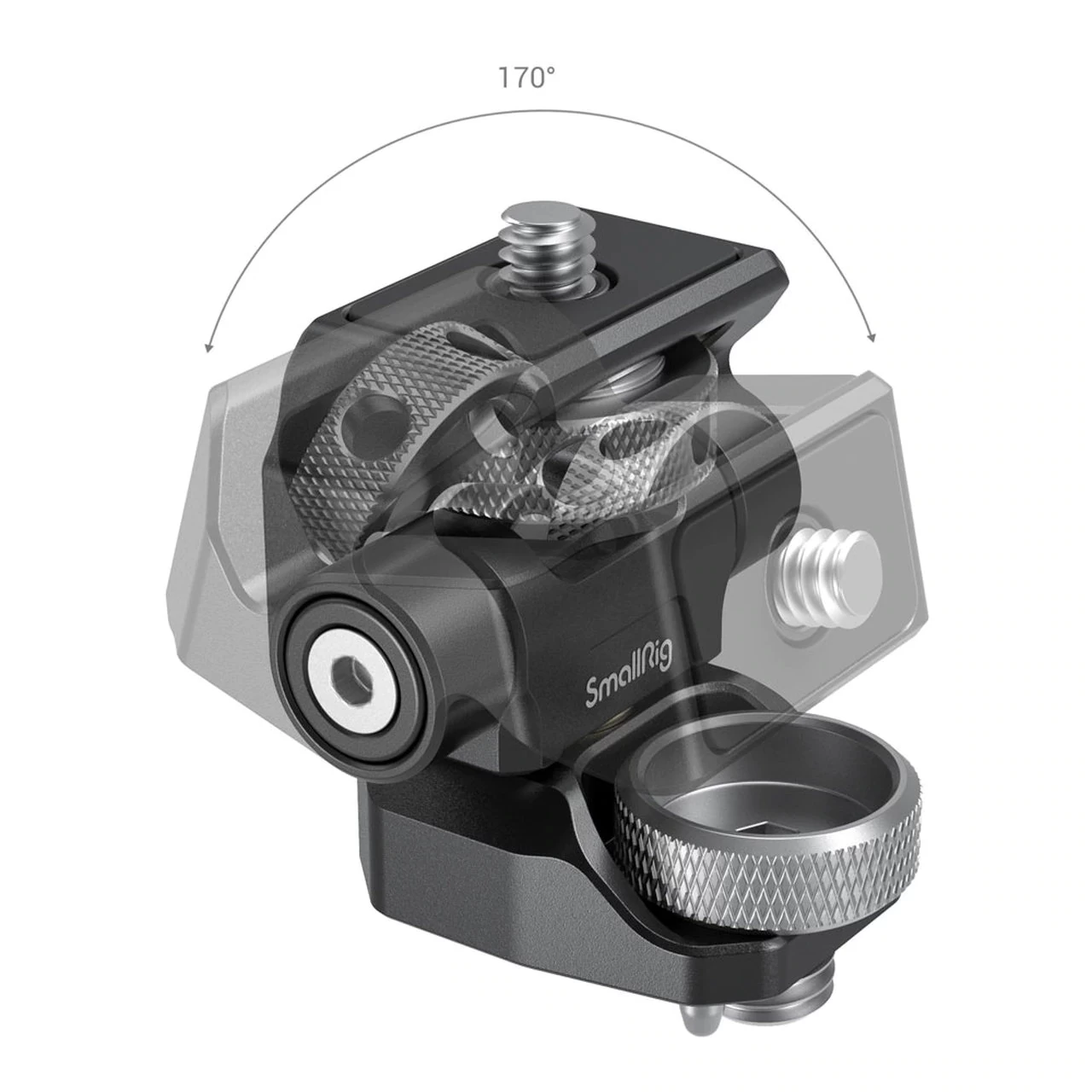

2. Swivels 360° and Tilts 170°.
3. Tightness Adjustable on Each Axis.
4. Features Slots on Thumbscrews for Tightening the Mount.
5. Secures to Cage/Handle via ARRI-Style Anti-Twist Mount.

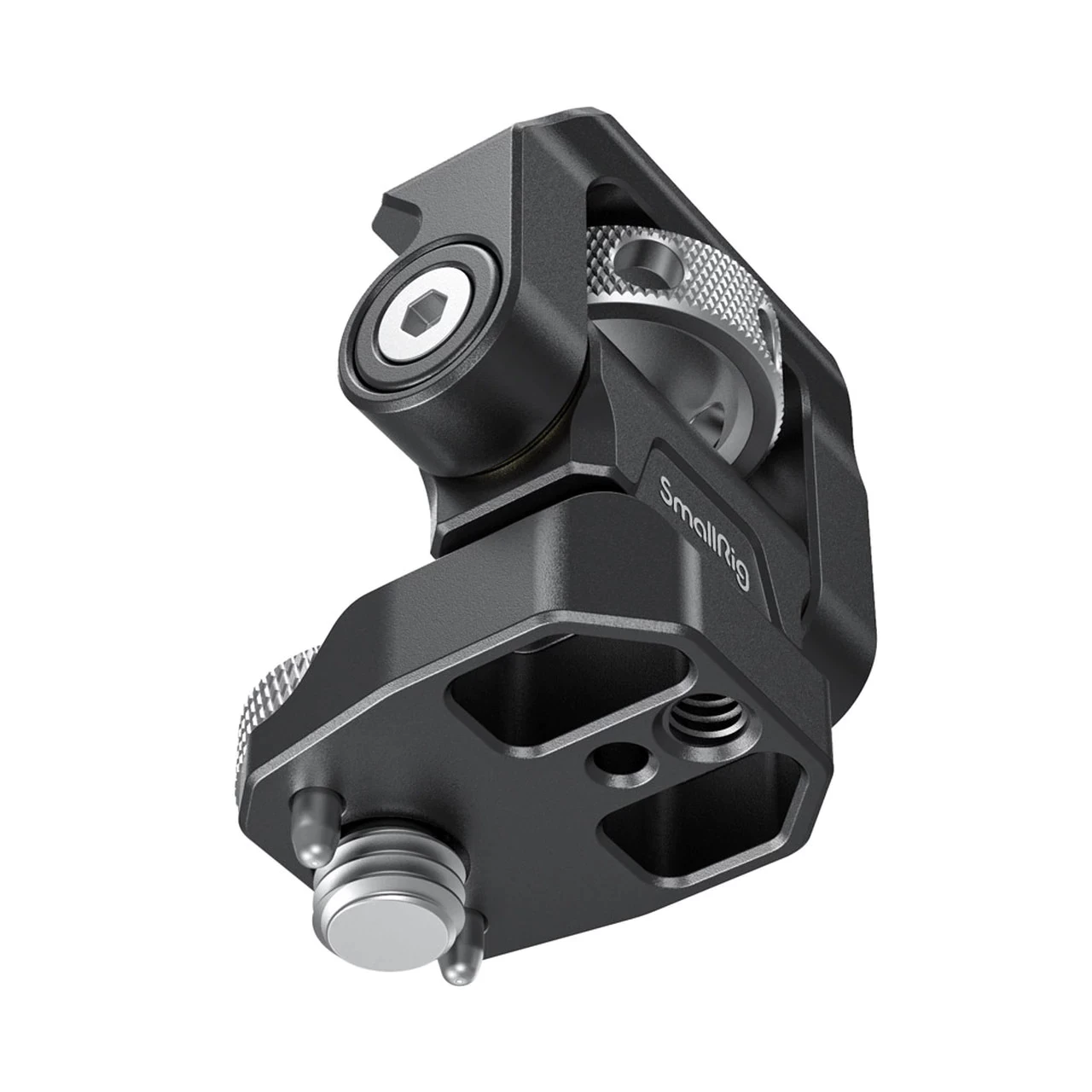

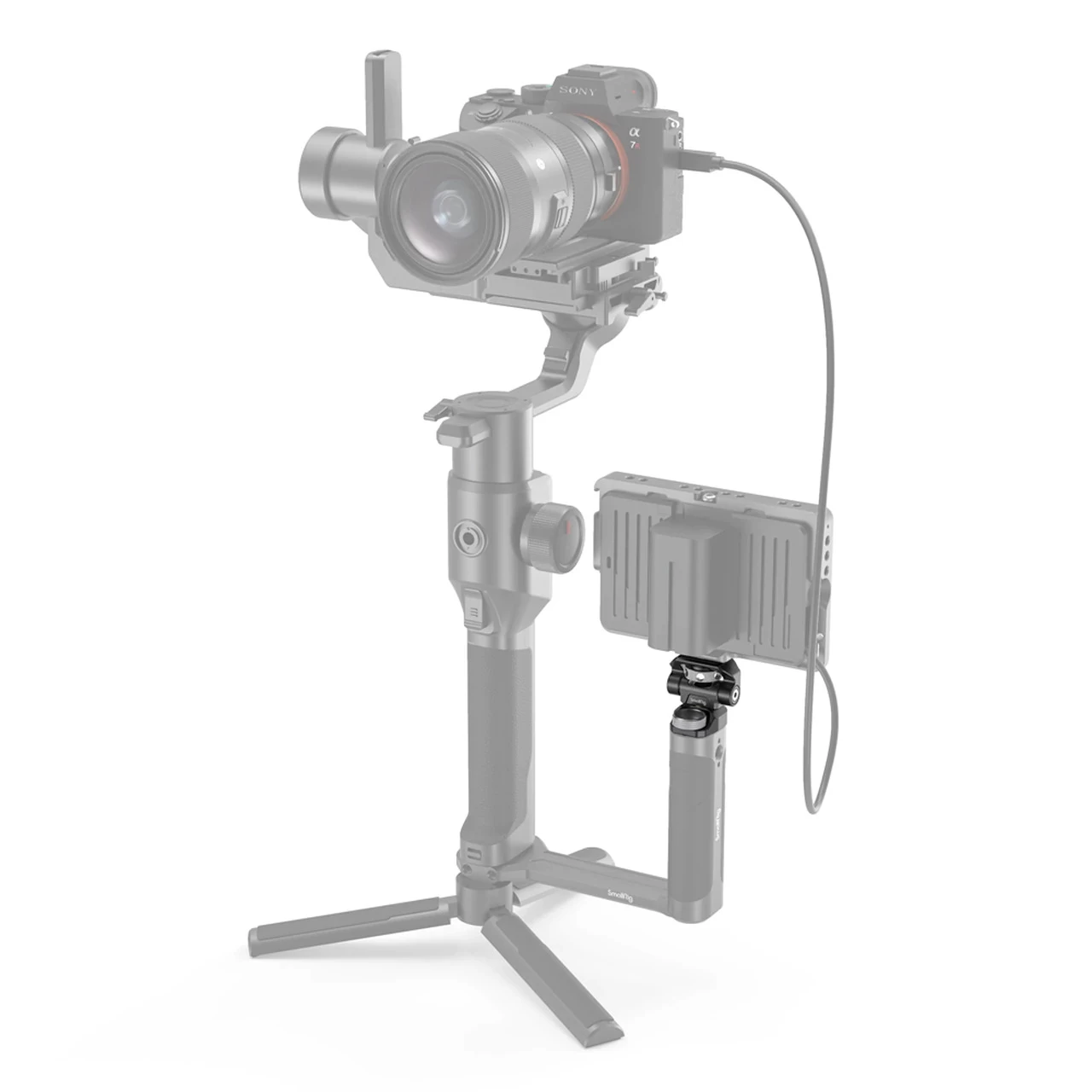

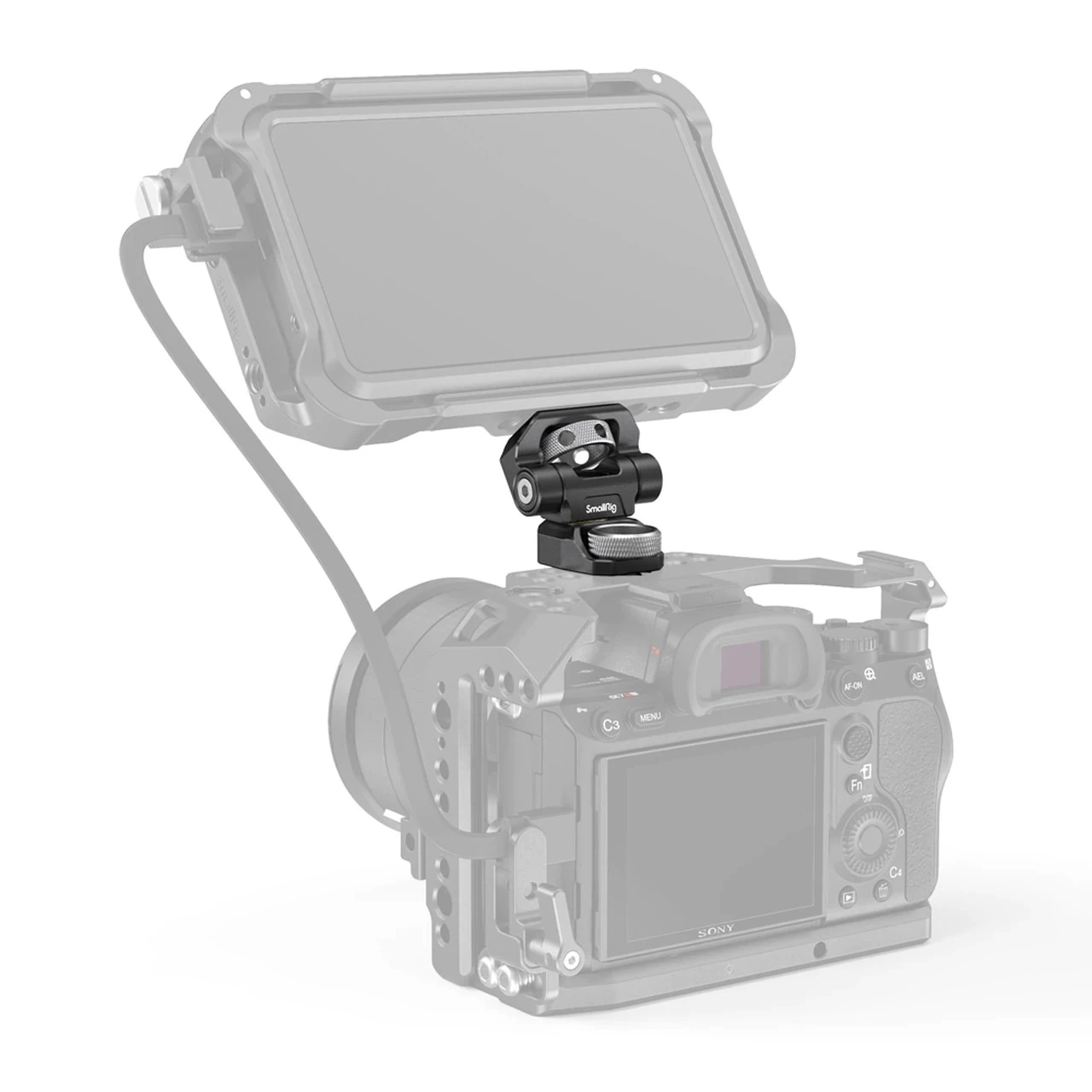

SmallRig Swivel and Tilt Adjustable Monitor Mount with ARRI-Style Mount 2903 is designed to hold your monitor onto the camera cage or other mounting system via ARRI 3/8”-16 style anti-twist mount. It features 1/4”-20 screw on the top for monitor, light, or microphone. The holder enables to swivel 360° sideways and tilts 170° with a free stop in any position. The tightness of each axis is adjustable via the Allen wrench. The robust mount is CNC-Machined Aluminum and can support 5” and 7” monitor up to 1.5kg. The swivel and tilt mount has protective rubber padding on top and includes an Allen wrench for tightening the mounts for further security. Besides, the bottom comes with a 1/4”-20 threaded hole for more DIY options.

Designer: Bear , Tracy Joy

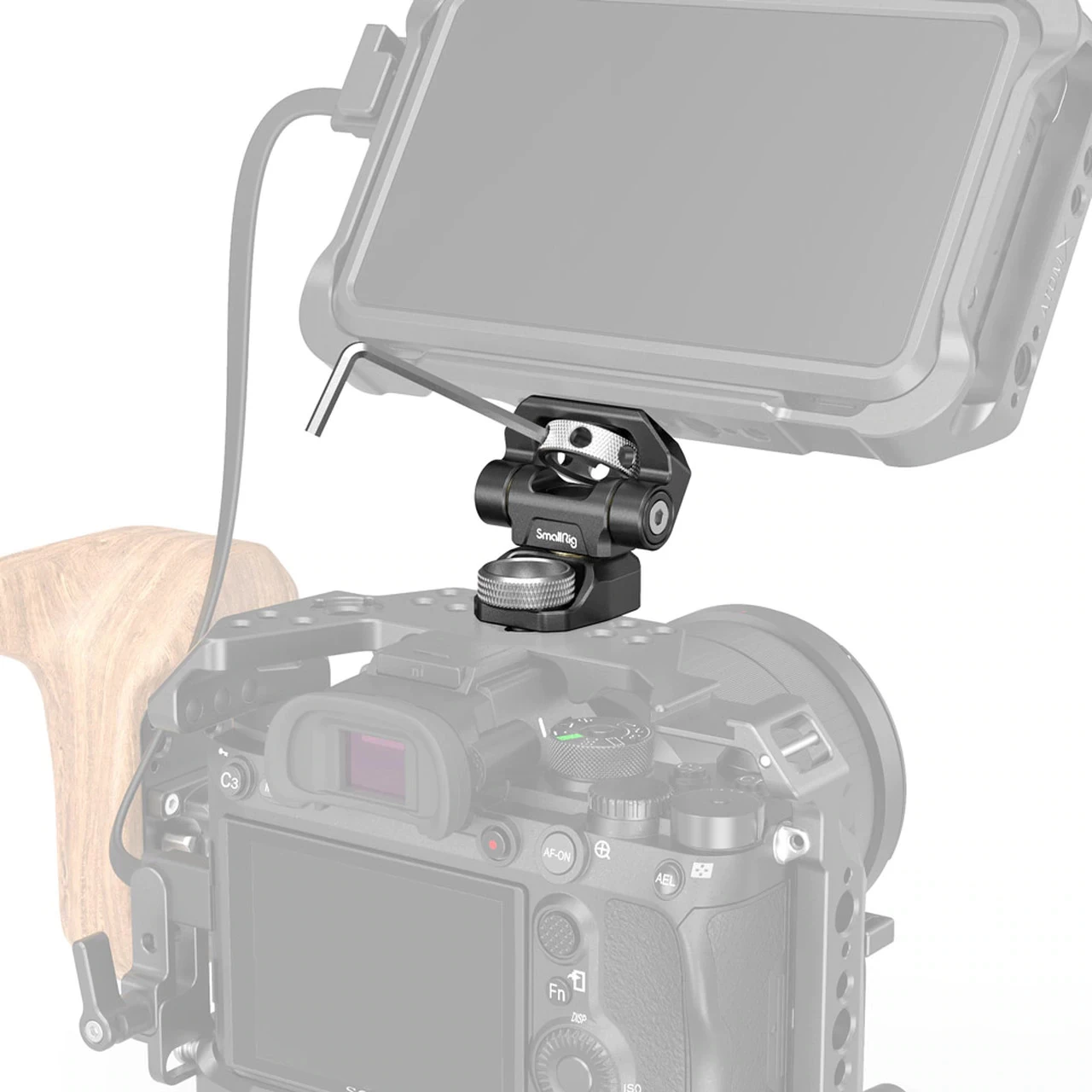

Note：Please do use the Allen Wrench to re-tighten the thumbscrew for further security.

Compatibility:
SmallHD Focus Series
SmallHD Focus OLED Series
SmallHD UltraBright Series
SmallHD 500 Series, 700 Series
Atomos Ninja Series
Atomos Shogun Flame
Blackmagic Video Assist 5”
Blackmagic Video Assist 4K 7”

Other accessories’ weights are less than 1.5kg.

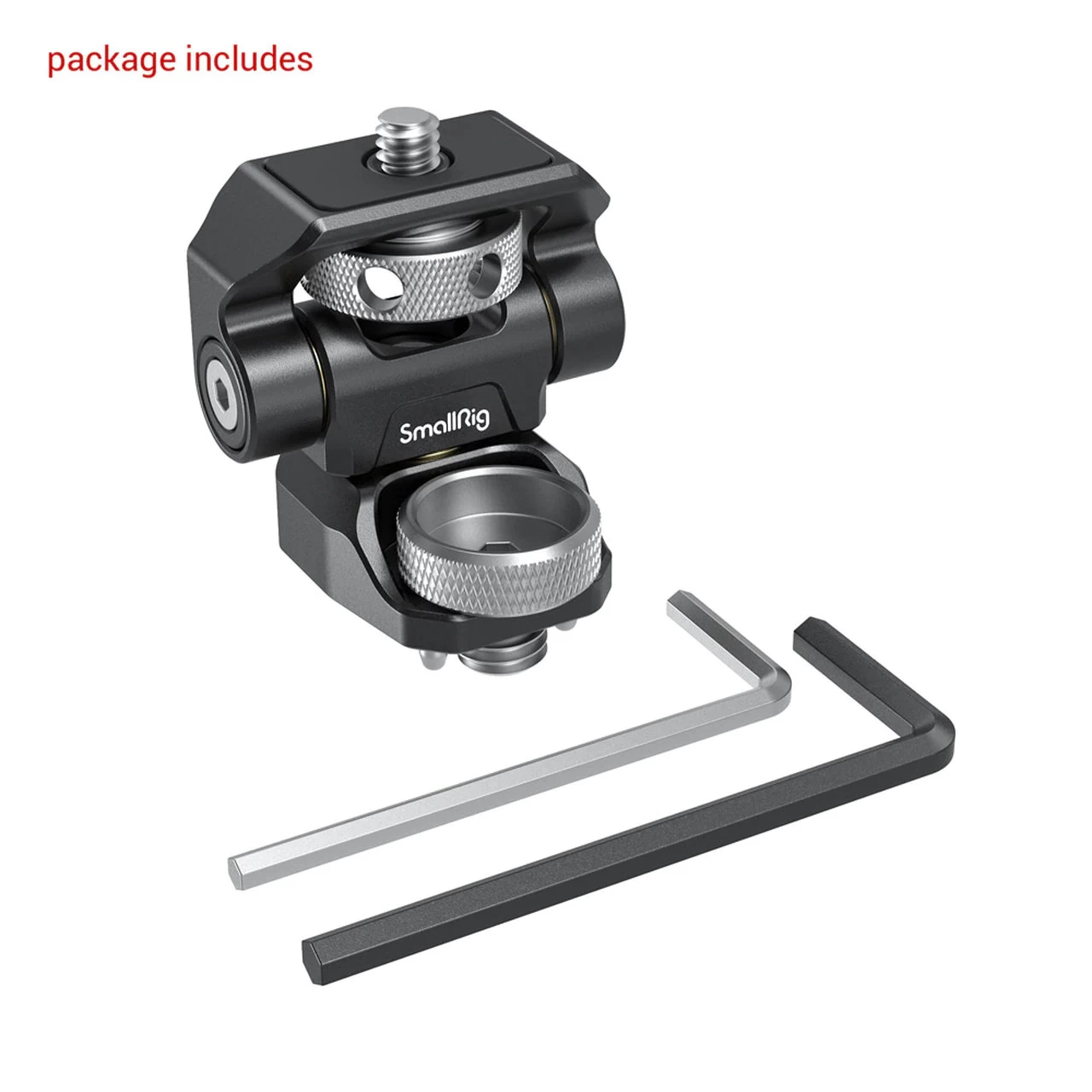

Package Includes:
1 x Monitor Mount
2 x Allen Wrench

Product Dimensions: 42 x 41.8 x 34mm
Package Dimensions: 76 x 63 x 40mm
Net Weight: 79g±5g
Package Weight: 104g±5g
Material(s): Aluminum Alloy, Stainless Steel
