SmallRig Extended Quick Release Plate For DJI RS 2 / Ronin-S / RS 3 / RS 3 Pro 3031B

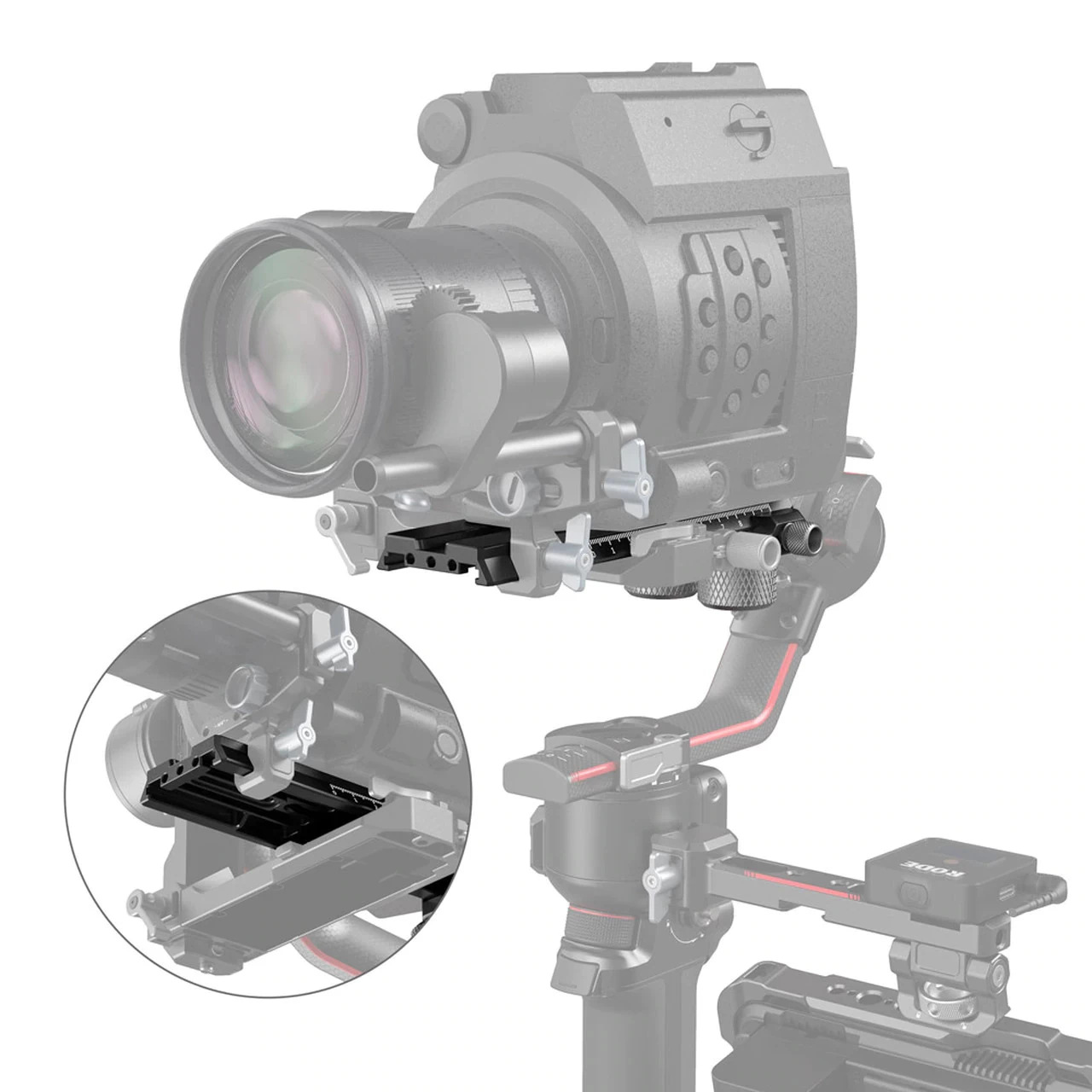

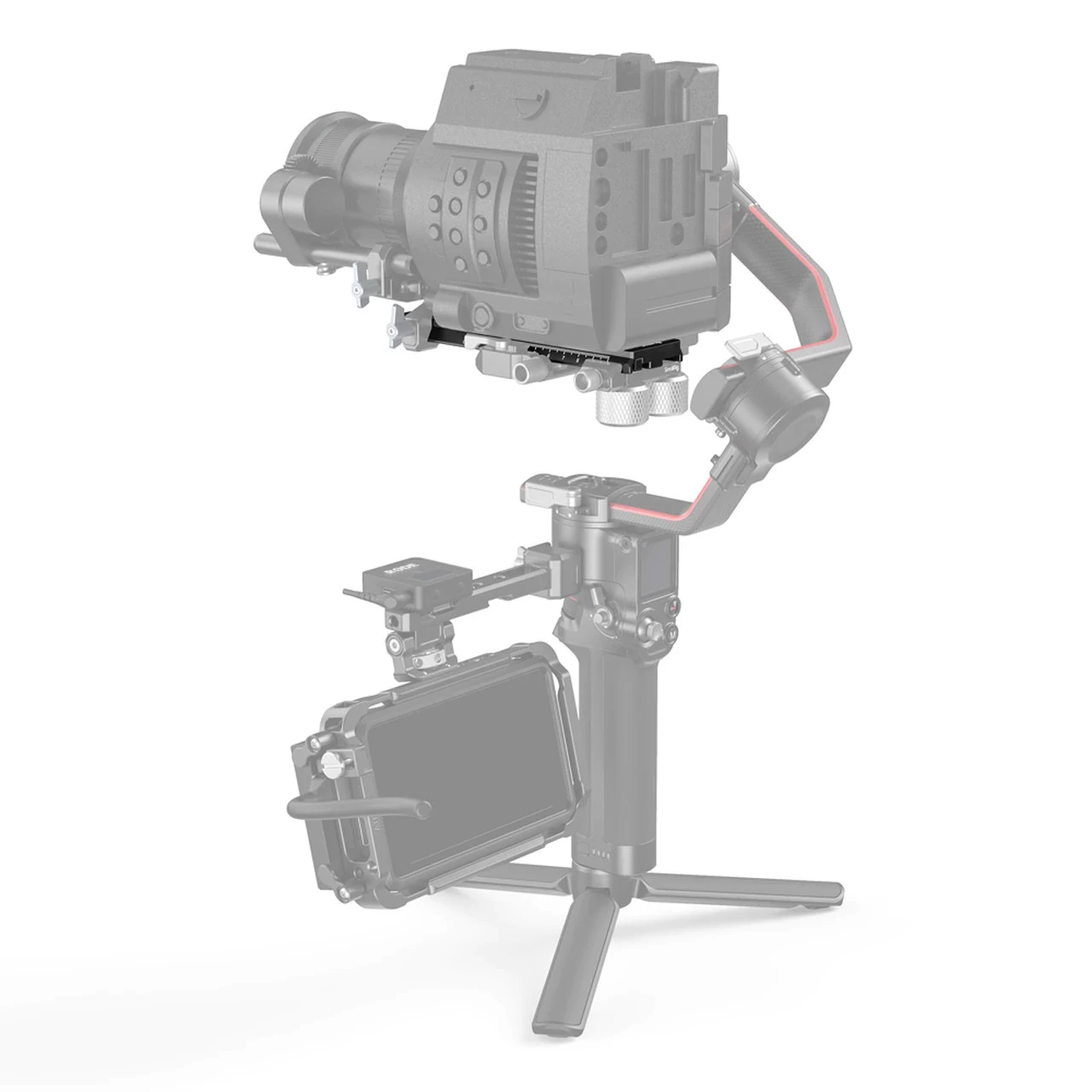

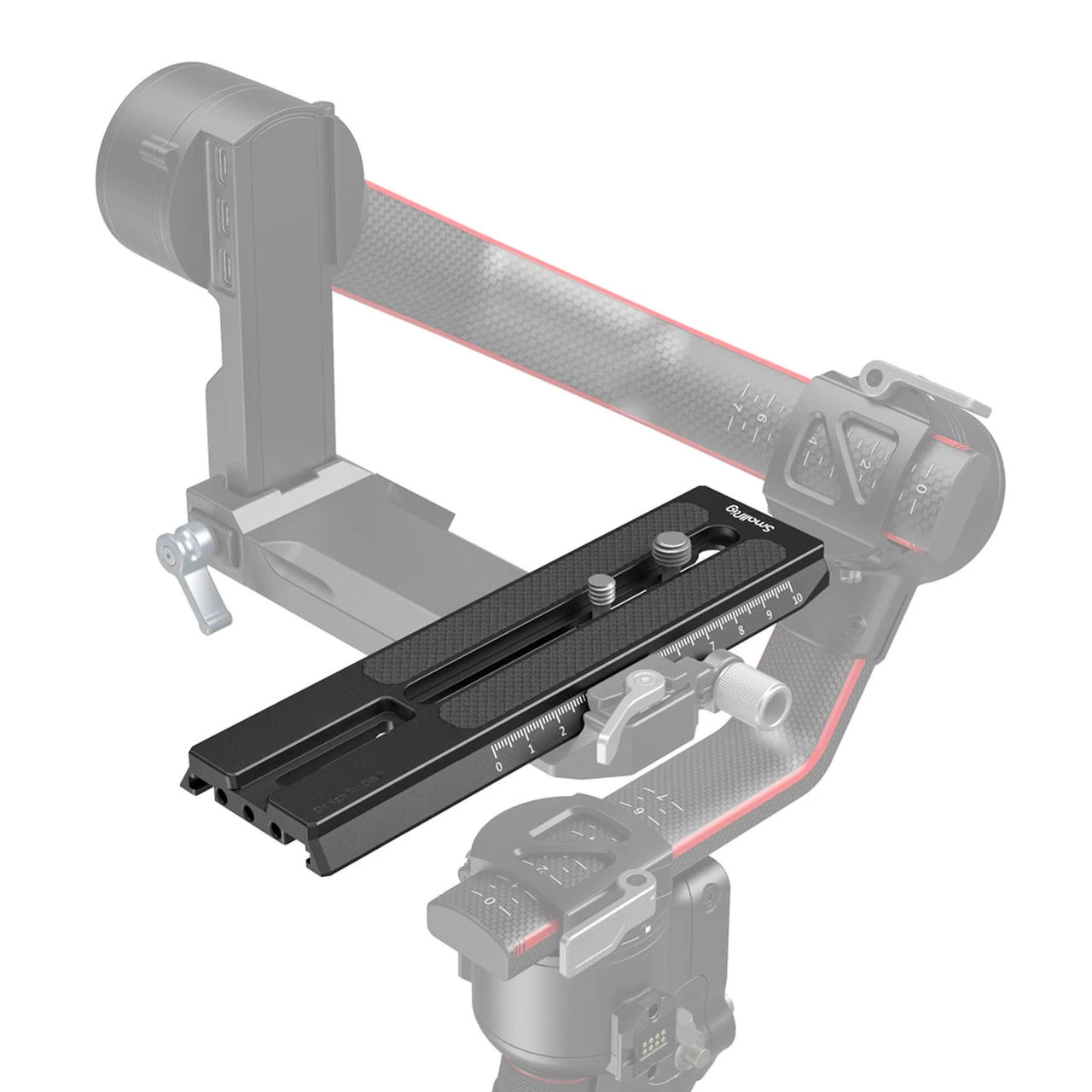

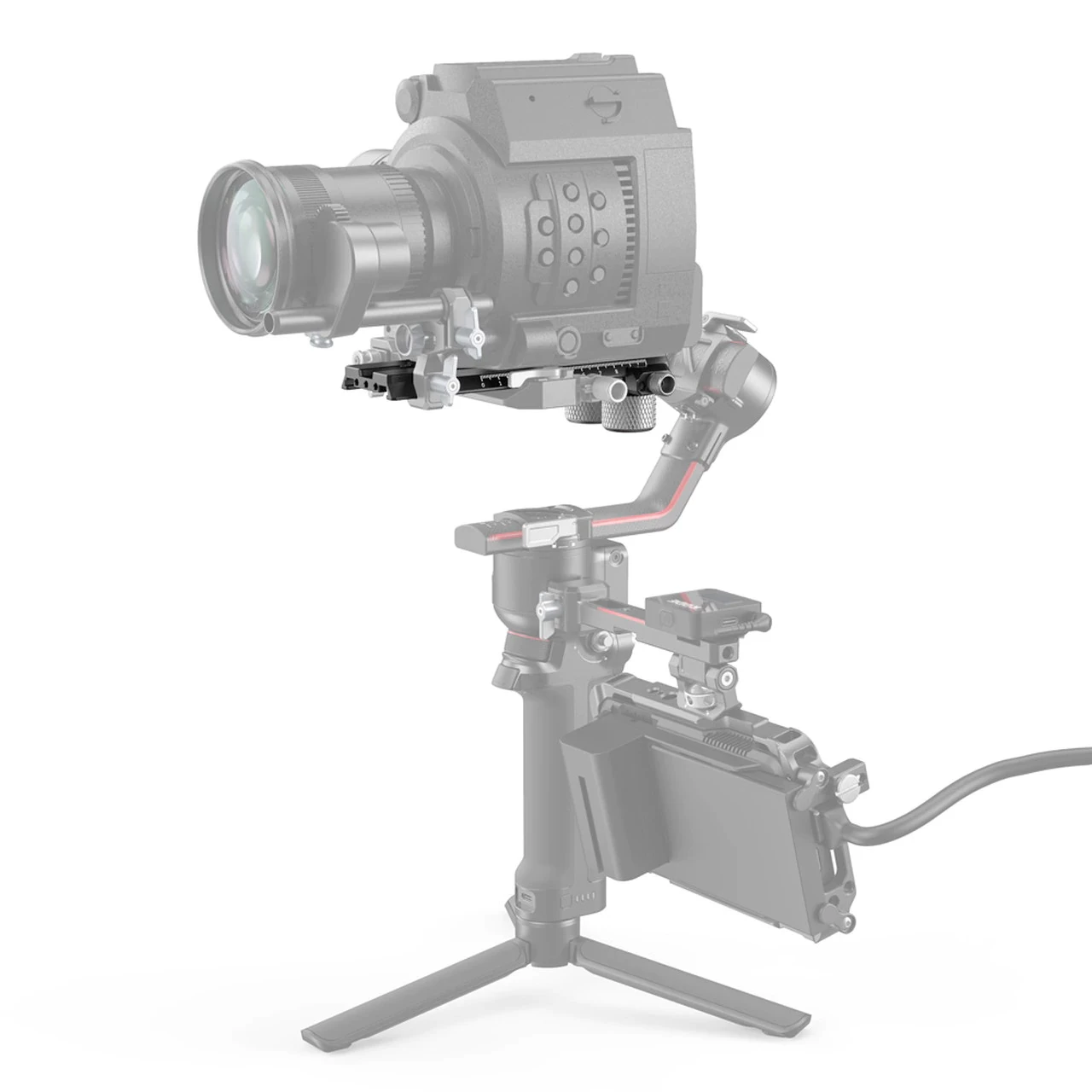

SmallRig Extended Quick Release Plate for DJI RS 2 / Ronin-S / RS 3 / RS 3 Pro 3031 is designed to mount professional cameras like Canon C100/200/300, RED, Komodo on the gimbal. The extended plate adds 40mm on the plate compared to the original camera plate. You can add Counterweight Kit 3125 to the rear to balance the stabilizer, attach Lens Support 2850 to protect the lens mount, and Focus Motor Component 2851 to connect the DJI focus motor when the lens is mounted on a large camera body or a camera with battery grip. In addition, a 1/4”-20 threaded hole on the bottom can be used for adding the Counterweight AAW2284 or AAW2285 for balance.

Designer: Yetta White



Compatibility:
DJI RS 2
DJI Ronin-S

DJI RS 3

DJI RS 3 Pro



Packing List:
1 x Quick Release Plate
1 x Allen Wrench

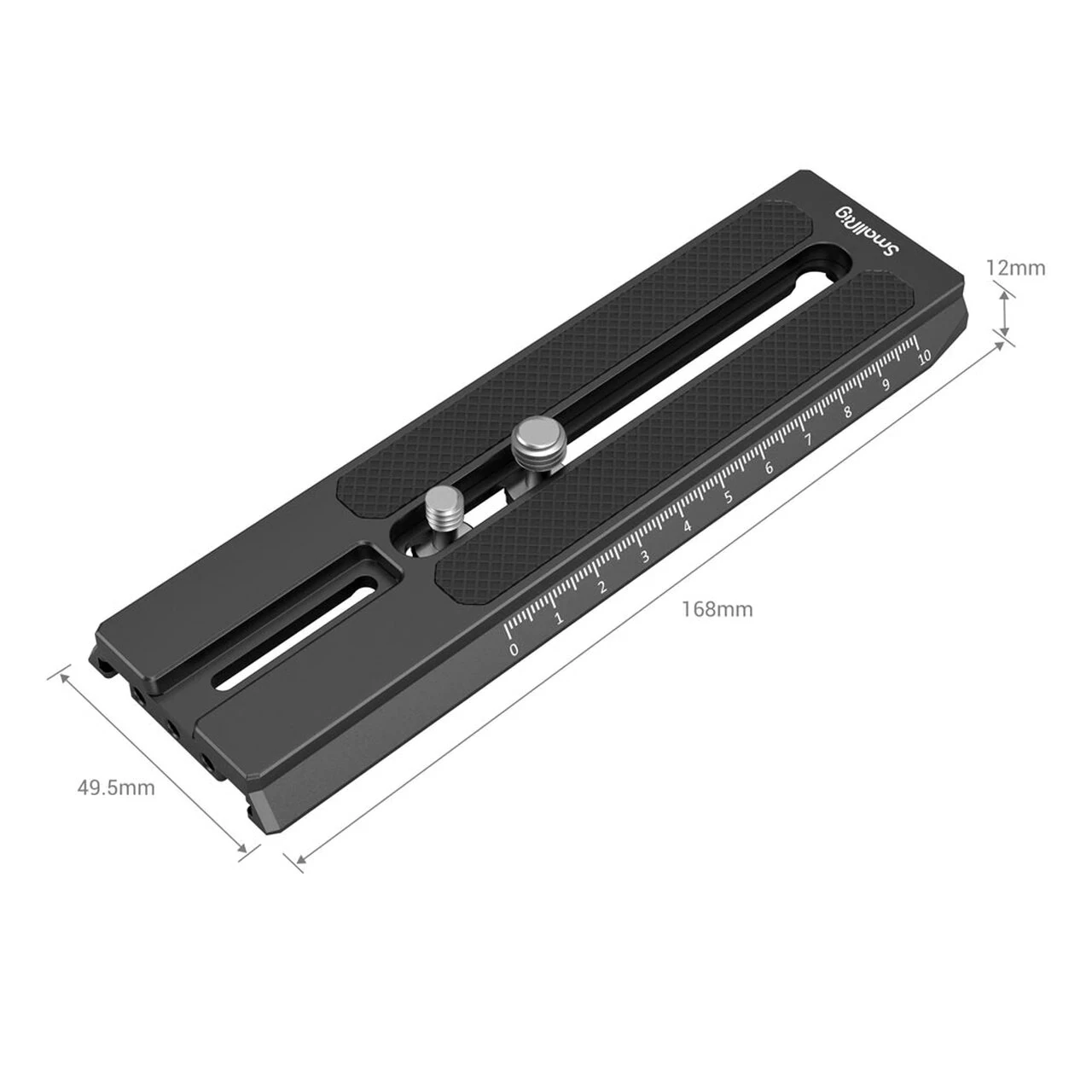

Product Dimensions: 168 x 49.5 x 12mm
Package Dimensions: 175 x 75 x 20mm
Net Weight: 125g±5g
Package Weight: 170g±5g
Material: Aluminum Alloy



SmallRig Extended Quick Release Plate for DJI RS 2 and Ronin-S Gimbal 3031

Key Feature:
1. Designed for DJI RS 2 and Ronin-S.
2. Locks camera via one 1/4”-20 and one 3/8”-16 screw to prevent twists.

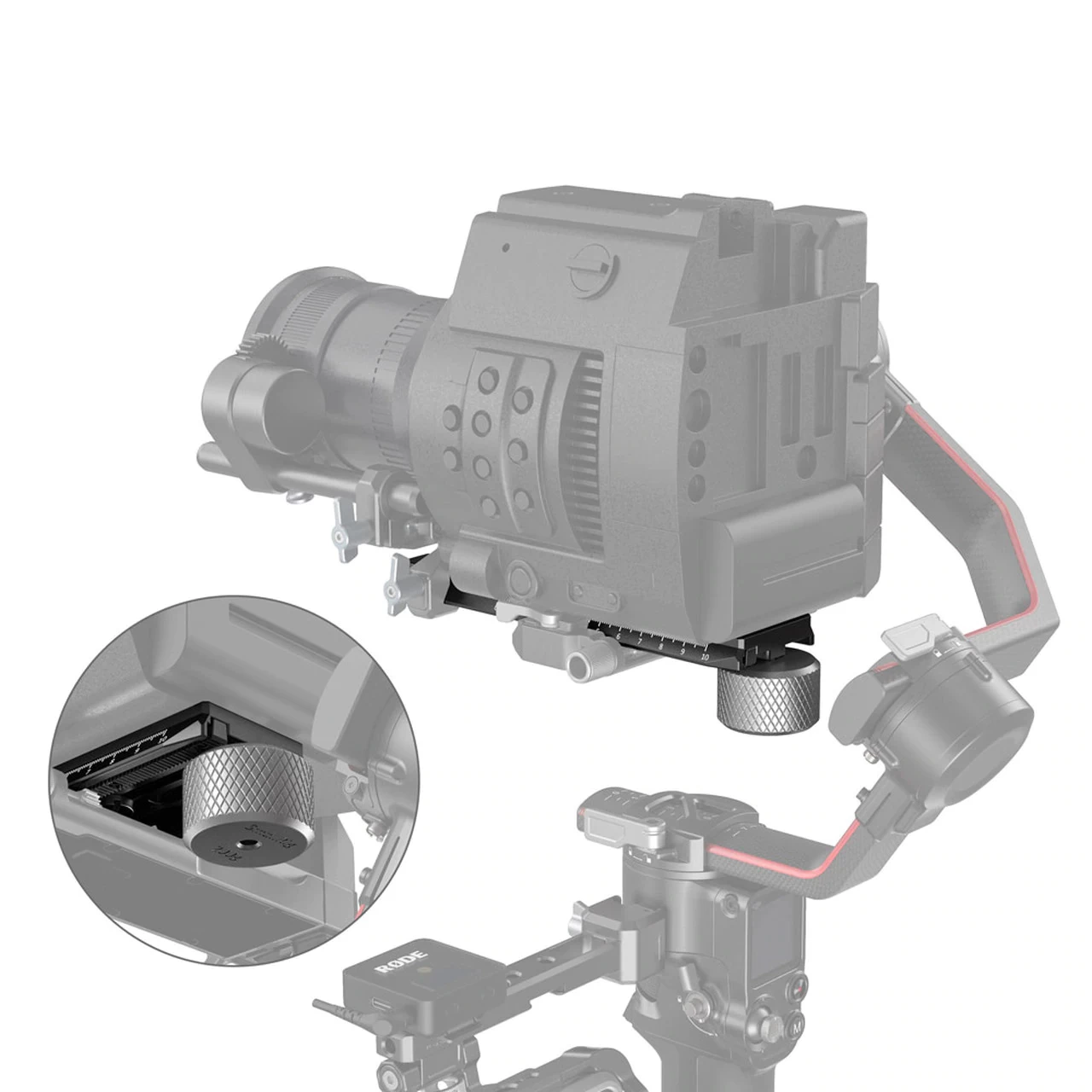

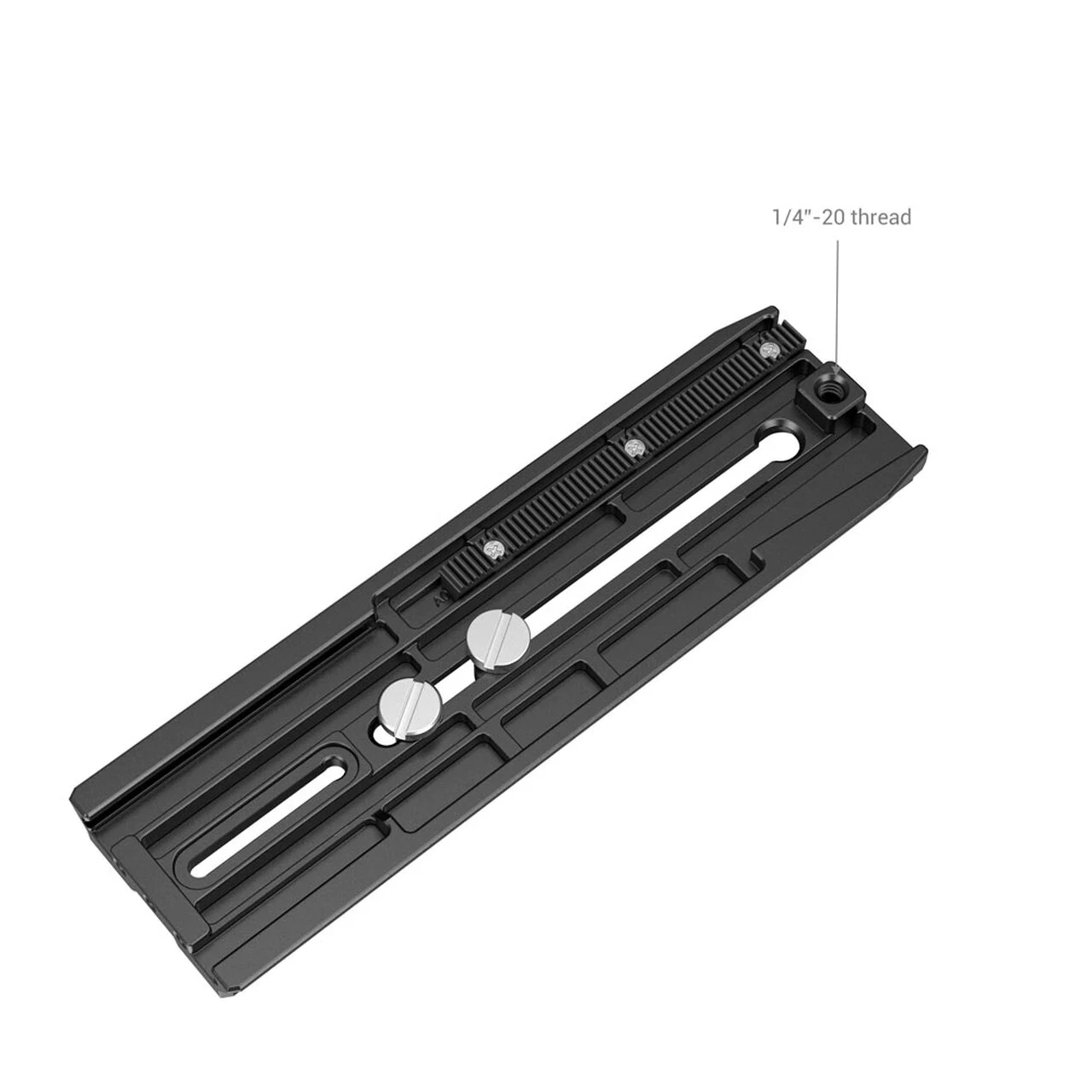

3. Features one 1/4”-20 threaded hole on the rear bottom for adding counterweight.

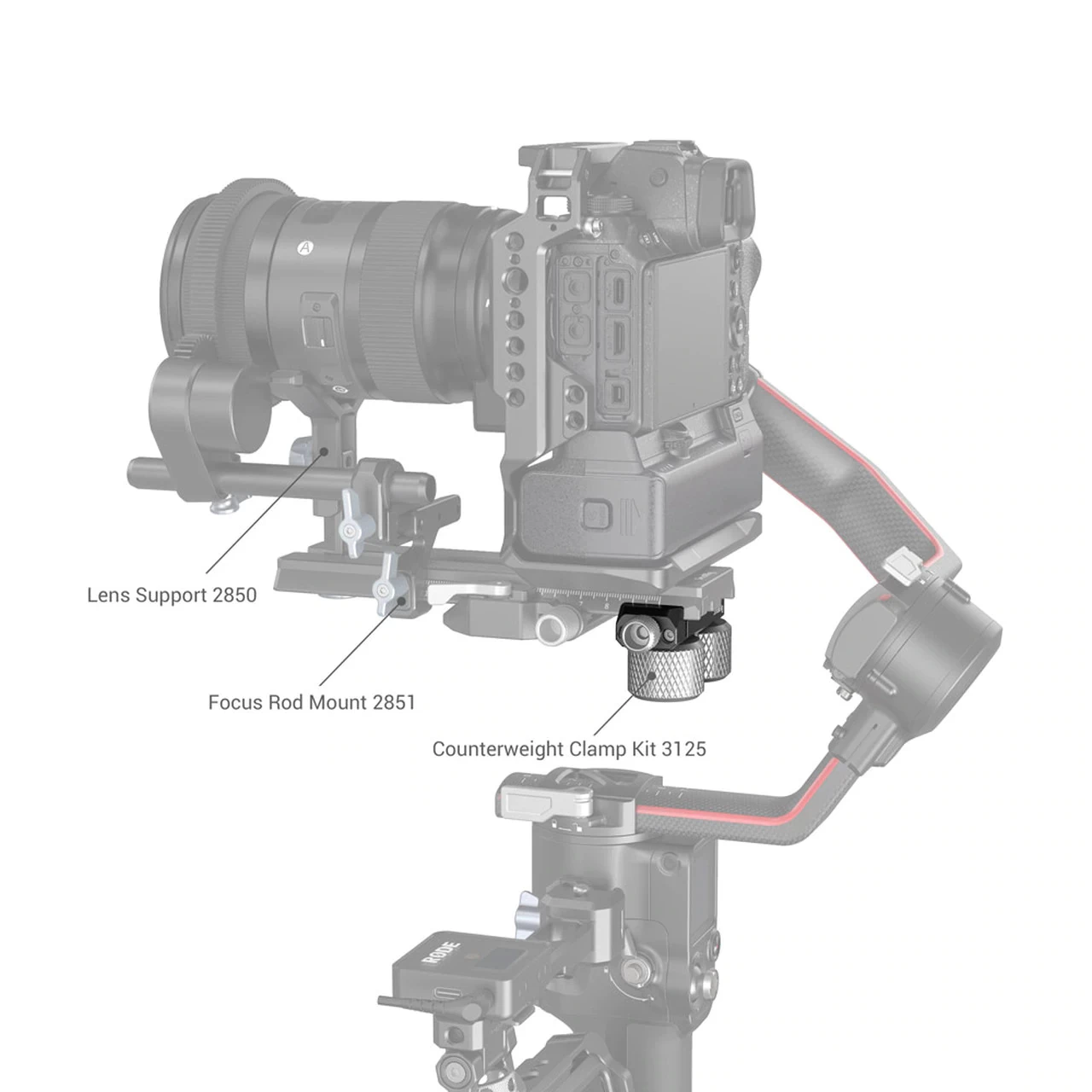

4. Works with SmallRig Counterweight Kit 3125, Focus Motor Component 2851, and Lens Support 2850.

SmallRig Extended Quick Release Plate for DJI RS 2 and Ronin-S 3031 is designed to mount professional cameras like Canon C100/200/300, RED, Komodo on the DJI RS 2 gimbal. The extended plate adds 40mm on the plate compared to the original camera plate. You can add Counterweight Kit 3125 to the rear to balance the stabilizer, attach Lens Support 2850 to protect the lens mount, and Focus Motor Component 2851 to connect the DJI focus motor when the lens is mounted on a large camera body or a camera with battery grip. In addition, a 1/4”-20 threaded hole on the bottom can be used for adding the Counterweight AAW2284 or AAW2285 for balance.

Designer: Yetta White

Compatibility:
DJI RS 2
DJI Ronin-S

Packing List:
1 x Quick Release Plate

Product Dimensions: 168 x 49.5 x 12mm
