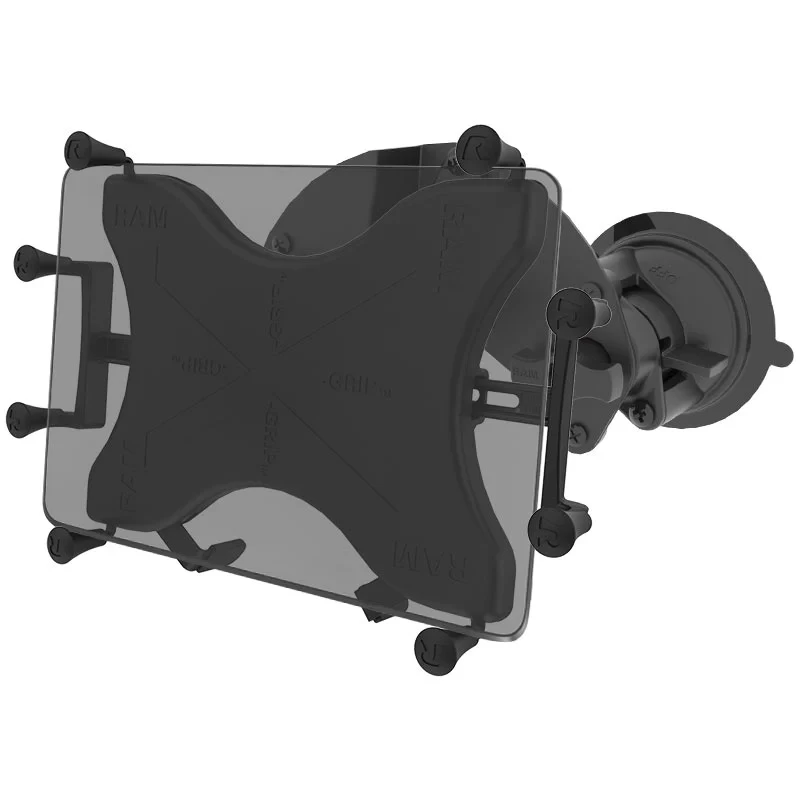

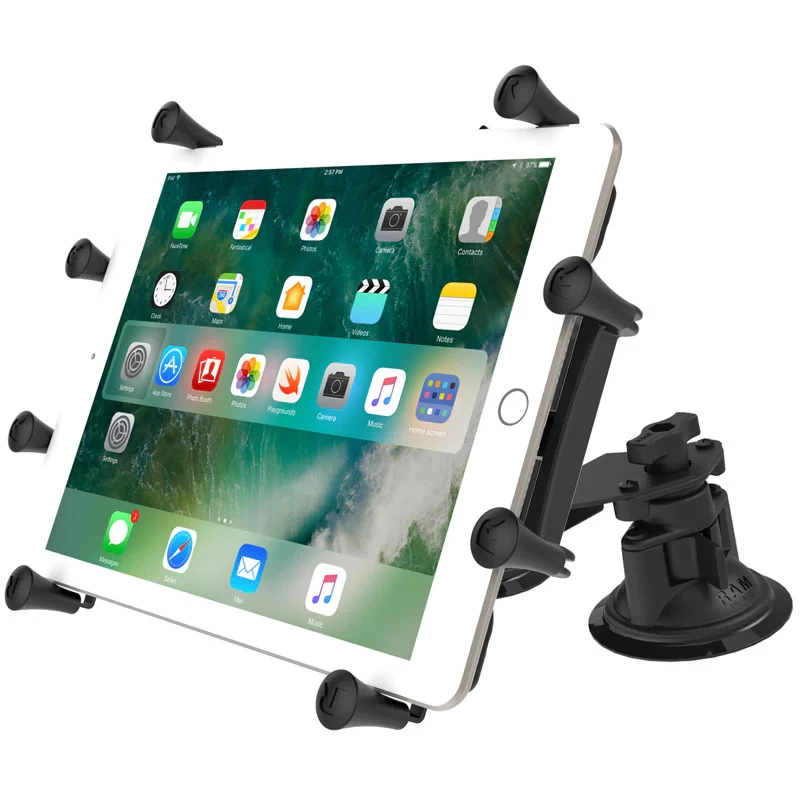

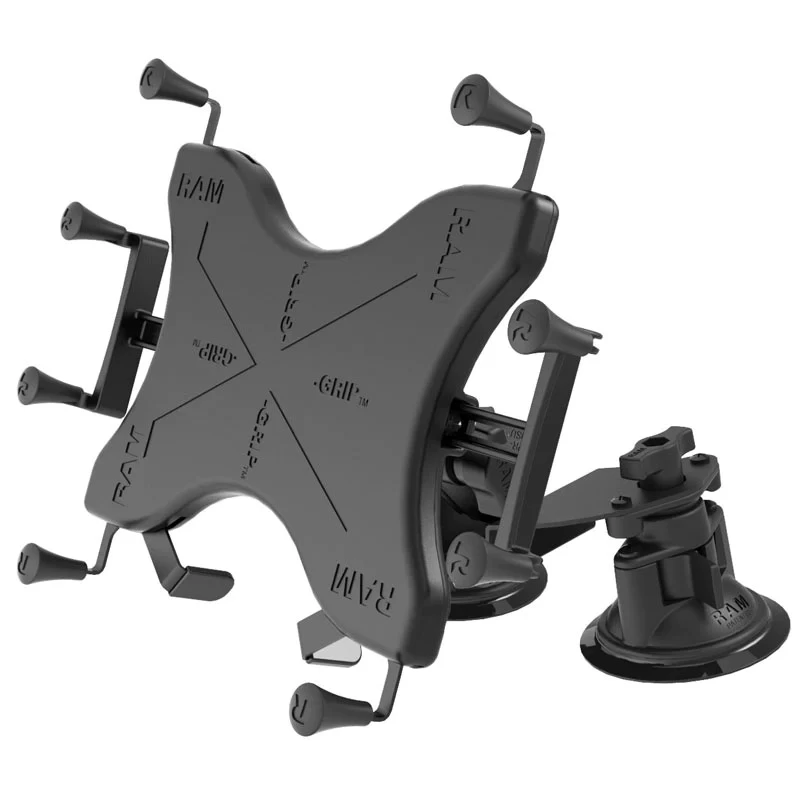

RAM MOUNTS RAM X-Grip With RAM Twist-Lock Pivot Suction For 9″-10″ Tablets

FEATURES

• Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 9″-10″ tablets
• Includes RAM^® Twist-Lock^™ dual suction cup base and medium length B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composite and steel components for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

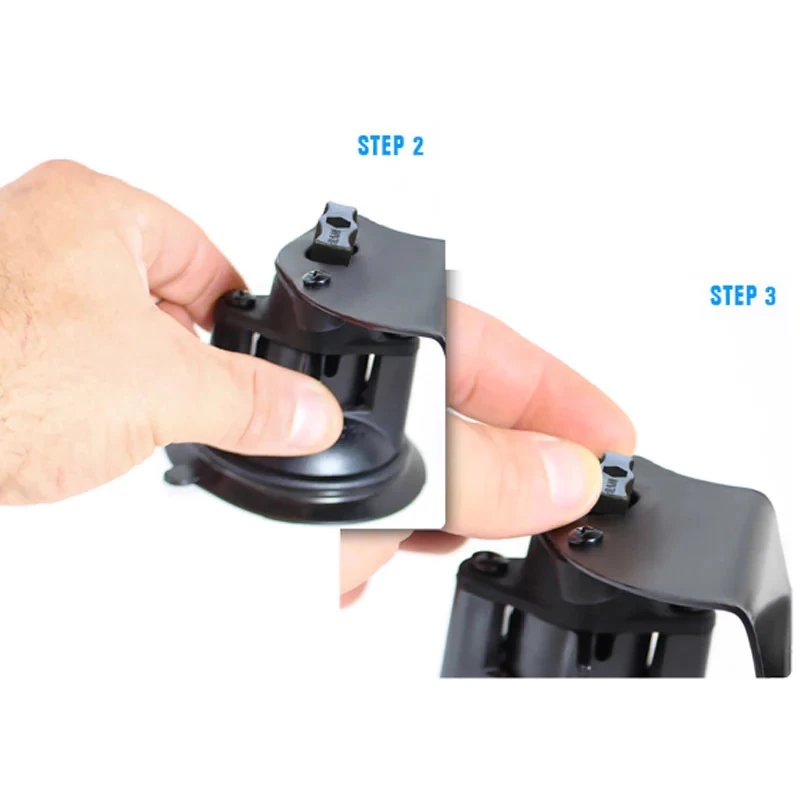

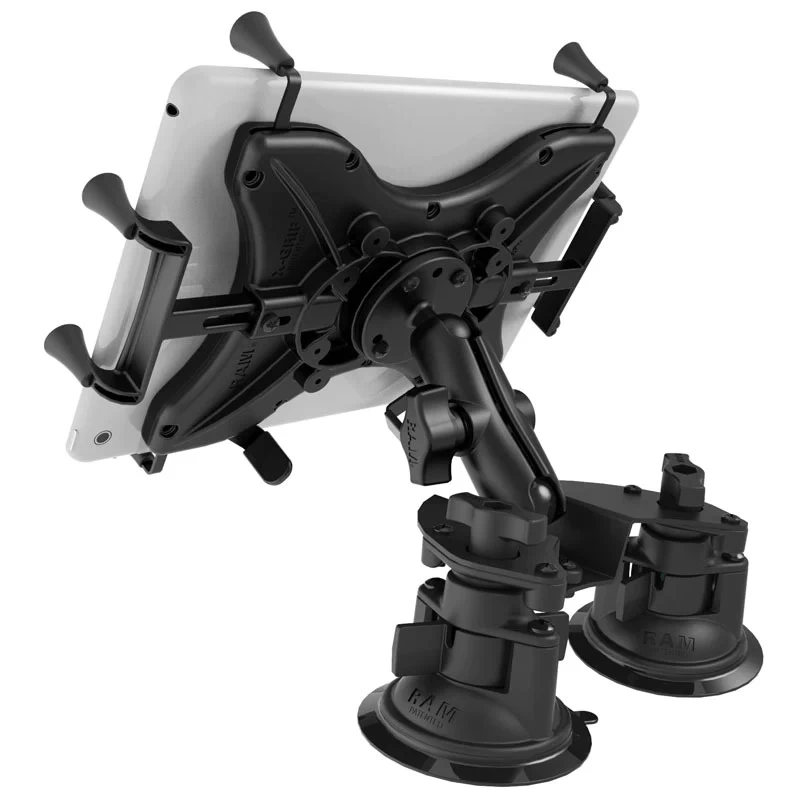

The RAM-B-189-PIV1-UN9-KRU consists of a dual articulating 3.3″ twist lock suction cup base, double socket arm, and universal X-Grip^® cradle for 10″ Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip^® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Max Height: 10.25″ (using optional supports)
Width Range: 6.25″ – 8.1″
Max Depth: .875″

SUCTION SIZE

(2) 3.3″ Diameter Bases, Total Width 7.95″

SOCKET TO SOCKET LENGTH

3″

BALL SIZE

B Size (1″)

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite
