RAM MOUNTS RAM Twist-Lock Suction Cup Double Ball Mount – Long

FEATURES

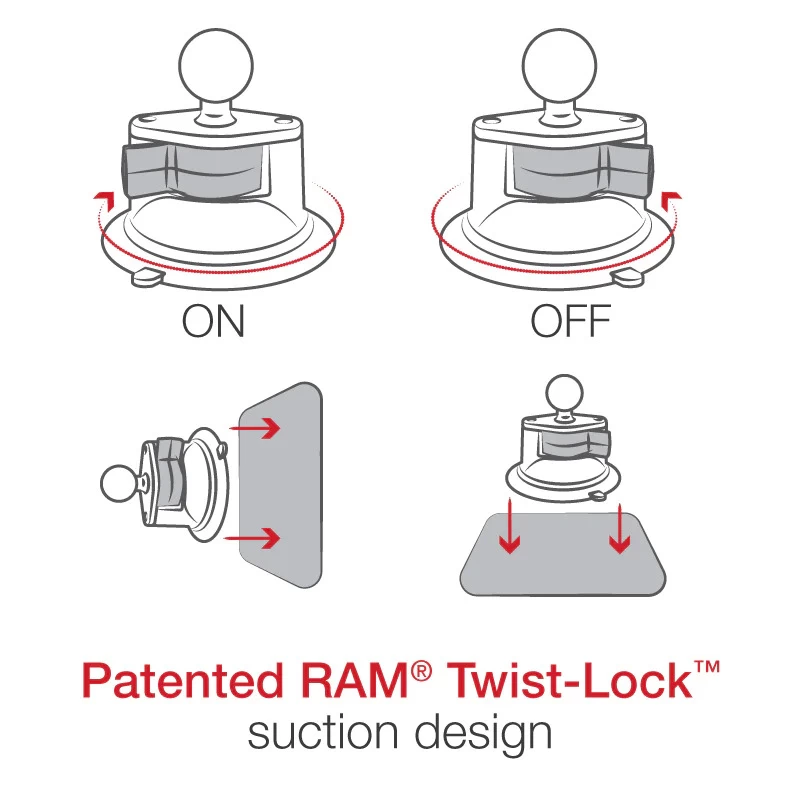

• RAM^® Twist-Lock^™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
• Includes B size long length RAM^® double socket arm and diamond bases with B size 1″ rubber balls; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

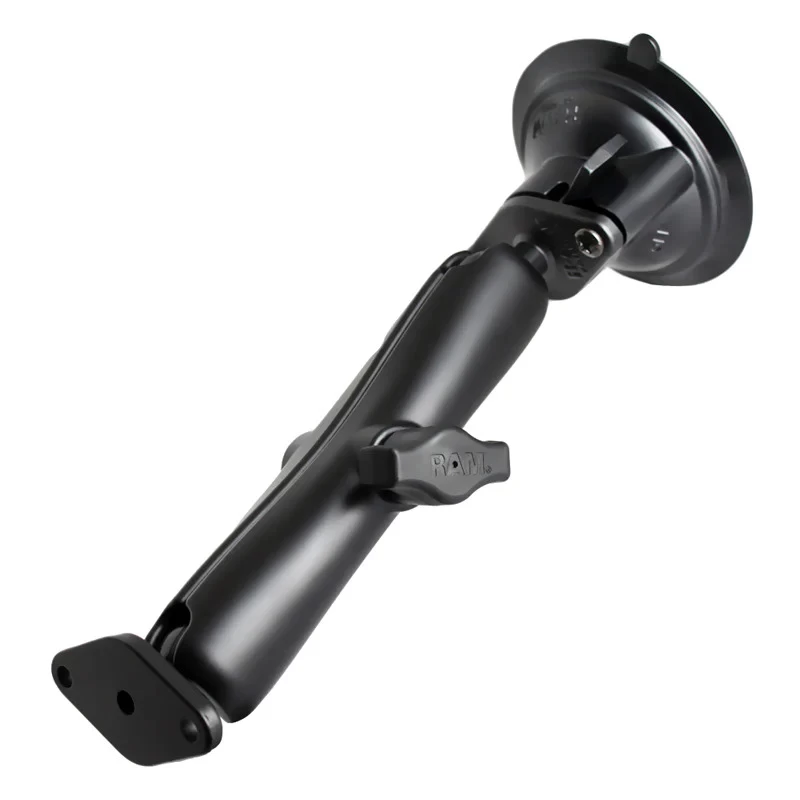

The RAM-B-166U-C consists of a 3.3″ diameter suction cup twist lock base, LONG double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM^® adhesive disks. The mount is designed with a RAM^® 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM^® cradles.

HARDWARE INCLUDED

Assembly Hardware

PRODUCT DIMENSIONS

Overall Height: 9″

SUCTION SIZE

3.3″ Diameter

SOCKET TO SOCKET LENGTH

5.31″

HOLE PATTERN

2-Hole AMPS: 1.912″

PLATE SIZE

2.43″ x 1.31″

BALL SIZE

B Size (1″)

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite
