RAM MOUNTS RAM Tough-Claw Small Clamp Mount With Round Plate Adapter

OVERVIEW

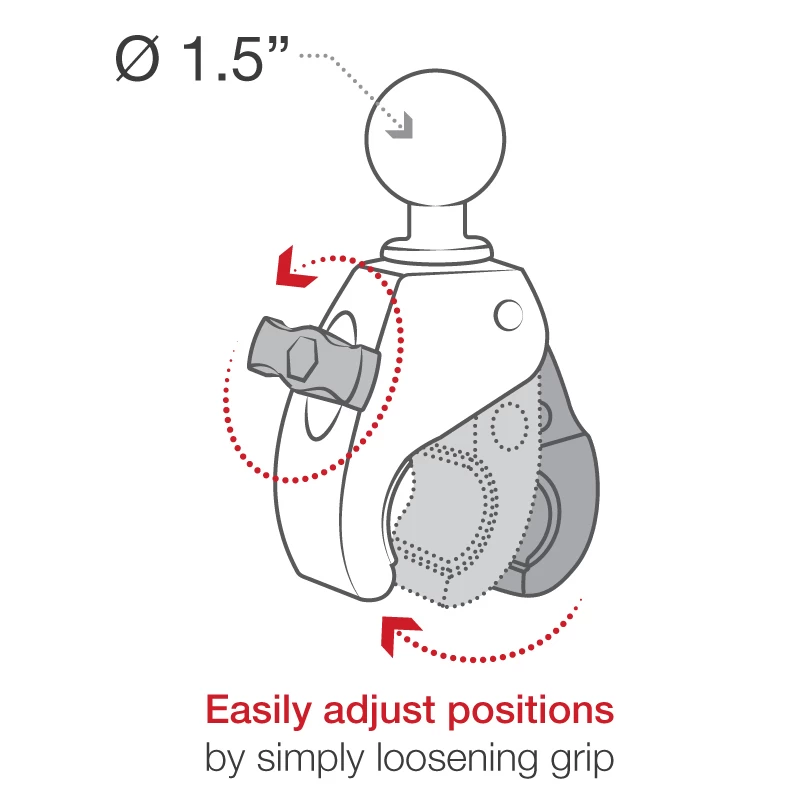

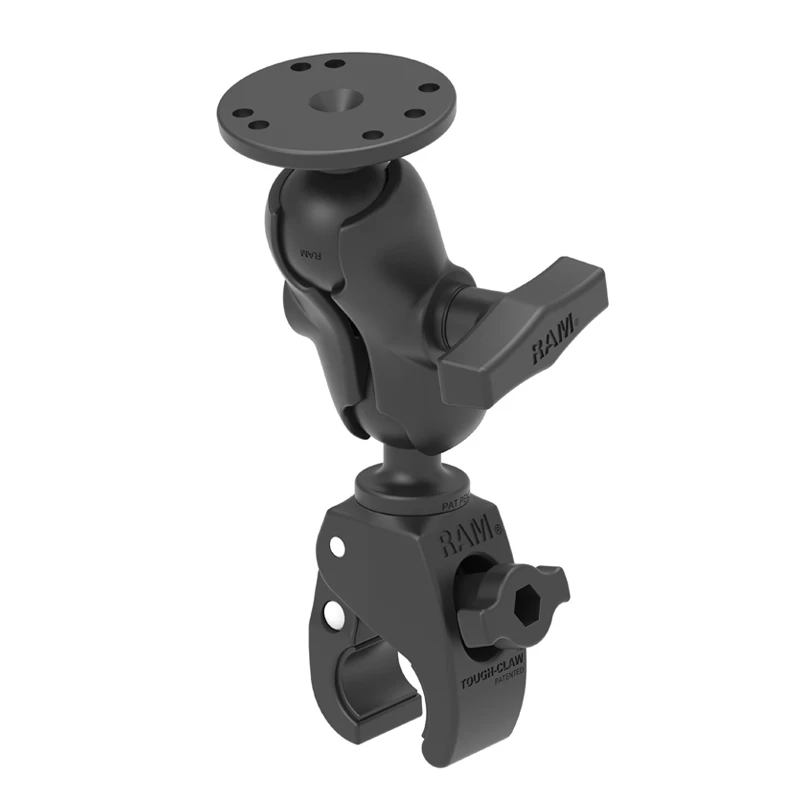

The RAM-202-B-400U consists of the small Tough-Claw^™ base, short double socket arm and round base adapter. The RAM Tough-Claw^™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw^™ can be clamped on rails from 0.625″ – 1.14″ outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

CLAMP RANGE

.625″ – 1.14″ diameter

SOCKET-TO-SOCKET LENGTH

2.5″

HOLE PATTERN

4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter

BALL SIZE

C Size (1.5″)

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.09 lbs.
