RAM MOUNTS RAM® Tab-Tite™ End Cups For 7-8″ Tablets With Cases

FEATURES

• Interchangeable RAM® Tab-Tite™ end cups support most 7-8″ tablets with cases
• Included hardware allows for easy attachment to RAM® Tab-Lock™ and RAM® Tab-Tite™ backplates (RAM-HOL-ACU)
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

PRODUCT INFORMATION

OVERVIEW:

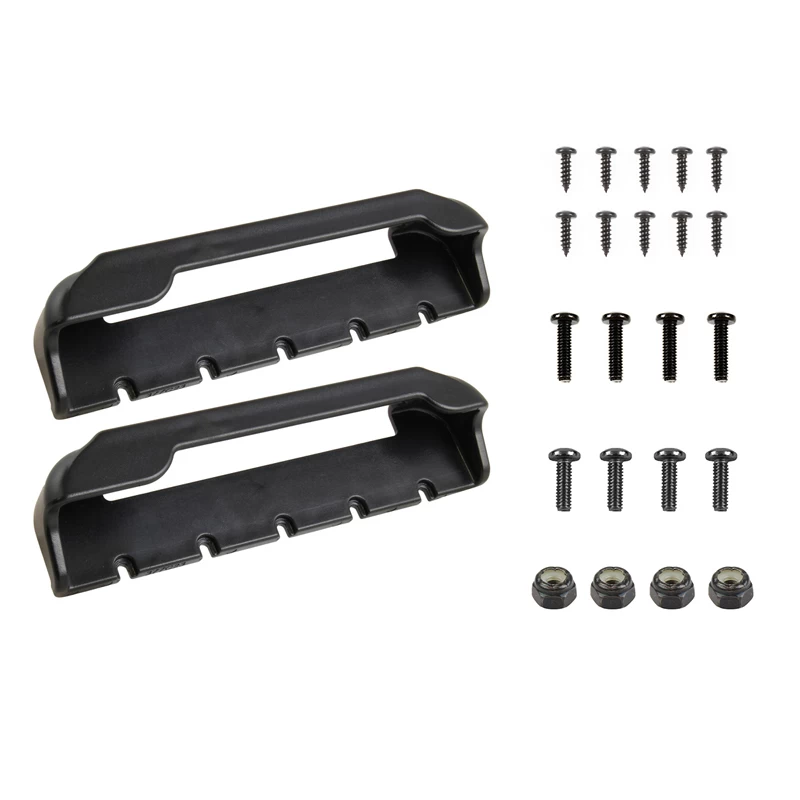

The RAM-HOL-TAB23-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.

The Tab-Tite™ cradle end cups are compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet in the case when determining the overall size.

  Cup End Dimensions:

     Length: 8.32″ to 10.92″

     Width: 4.43″ to 5.3″

     Depth: 0.13″ to 0.62″

HARDWARE INCLUDED

(10) #4 x 3/8″ Sheet Metal Screws
(4) #8-32 x 5/8″ Machine Screws
(4) #8-32 x 1/2″ Machine Screws
(4) #8-32 Nylock Nuts
