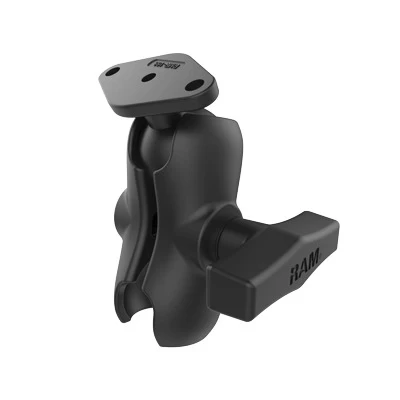

RAM MOUNTS RAM Short Double Socket Arm With Diamond Ball Plate

FEATURES

• Diamond plate connects to RAM® device holders containing the universal AMPS 2-hole pattern
• Includes C size short length double socket arm 3.56″ end to end with 2.5″ socket-to-socket length; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

The RAM-103-B-238U consists of the 1.5″ C size diameter ball and socket system with one open socket end; RAM-201U-B socket arm is short length at 3.56″ end to end with 2.5″ socket-to-socket length. This mount is designed to be used with any of the C size RAM^® Mount bases or cradles with a 1.5″ diameter rubber ball. The RAM-238U RAM^® Diamond Ball Base features industry standard AMPS 2-hole pattern and can be used as an adapter to attach a holder, or a mounting drill-down base.

SOCKET-TO-SOCKET LENGTH

2.5″

HOLE PATTERN

2-Hole AMPS 1.912″

PLATE SIZE

2.43″ x 1.31″

BALL SIZE

C Size (1.5″)

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.7 lbs.
