RAM MOUNTS RAM Round Plate With 1″ Ball

FEATURES

• 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern

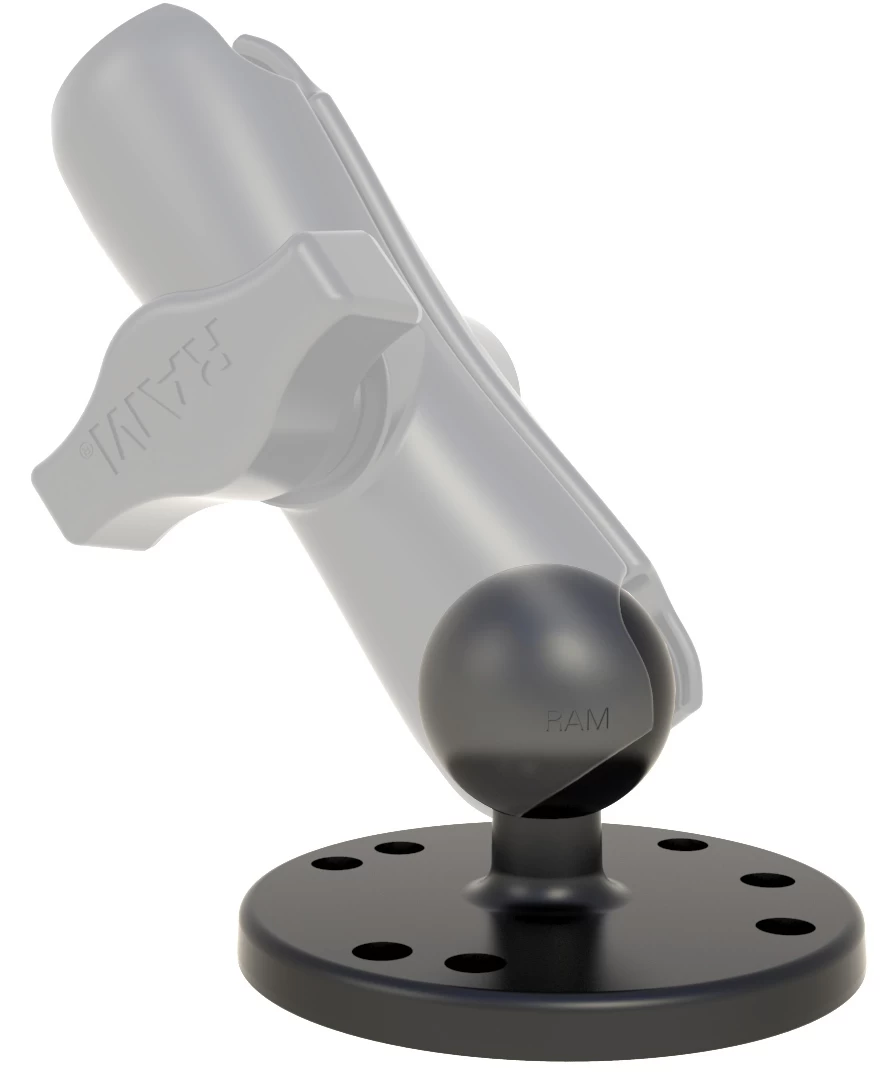

• Included B size 1″ RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

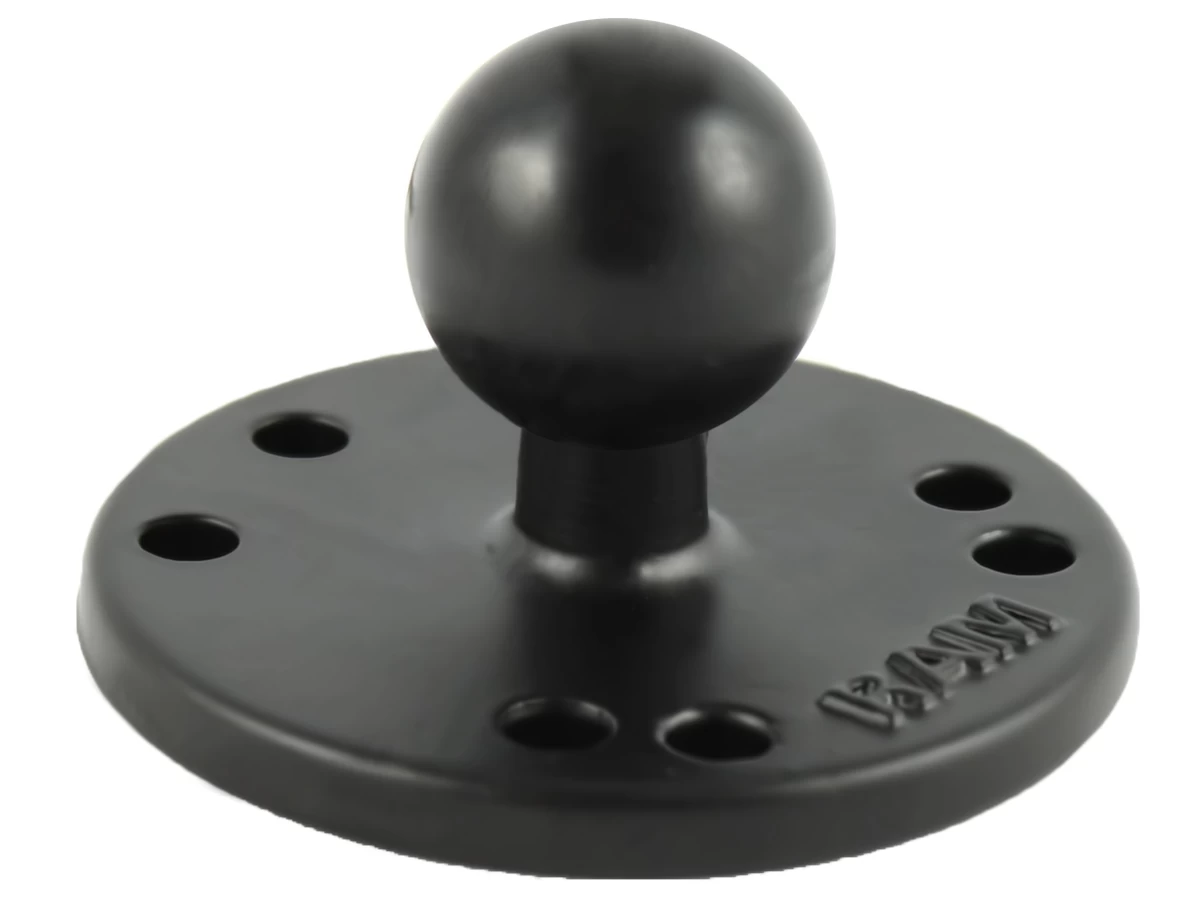

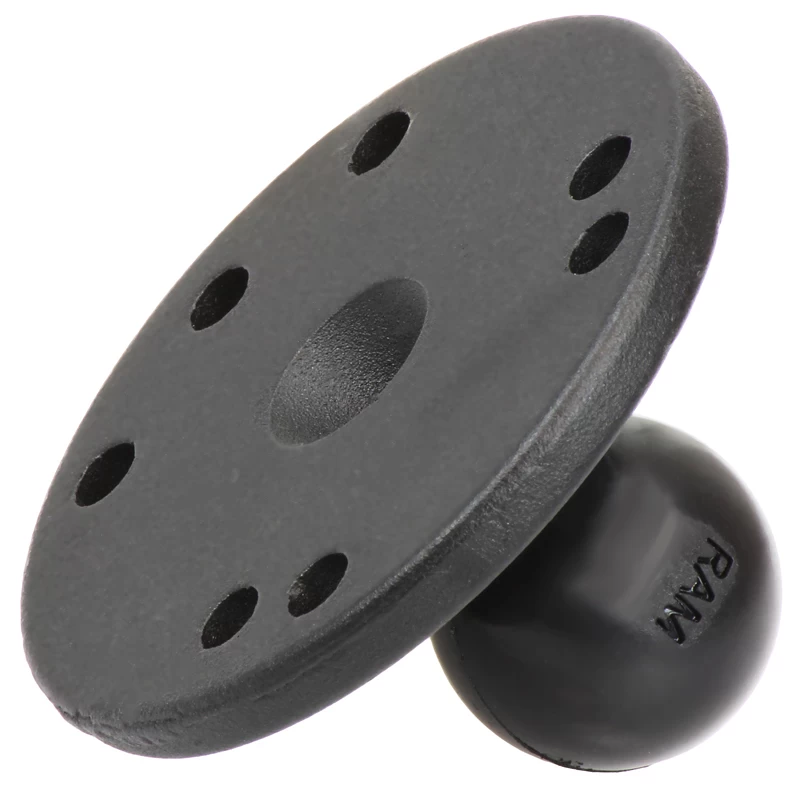

The RAM-B-202U consists of a 1″ B size rubber ball connected to a 2.5″ diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

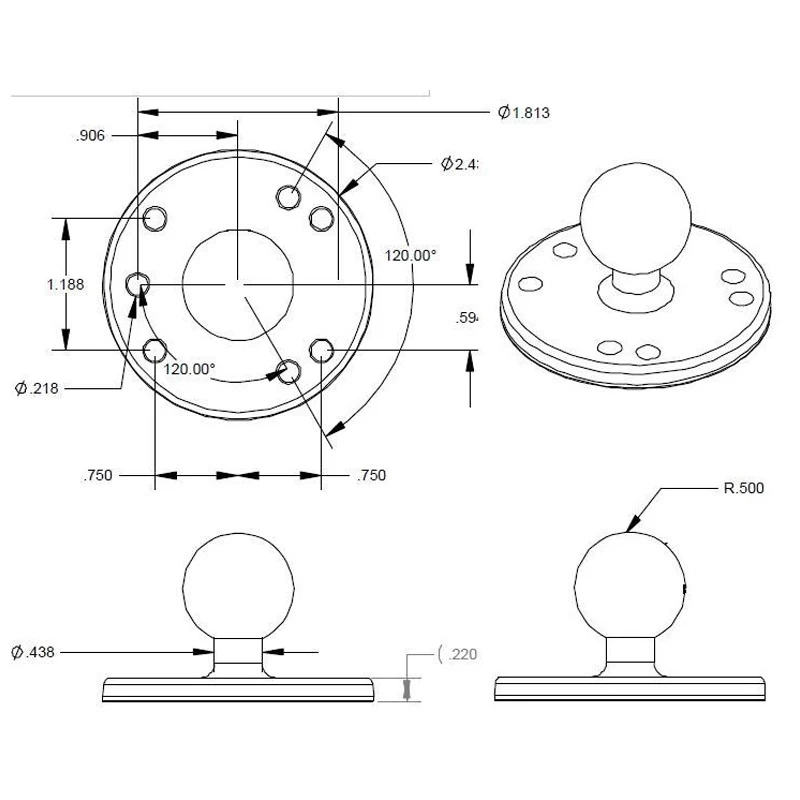

HOLE PATTERN

4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter

PLATE SIZE

2.5″ Diameter

BALL/SOCKET SIZE

B Size (1″)

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
