RAM MOUNTS RAM Phone Mount For Wheelchair Armrests With Quick Release & Swivel

FEATURES

• Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
• Easy swivel and quick release capabilities without changing ball and socket positioning
• Compact design keeps mount within armrest width

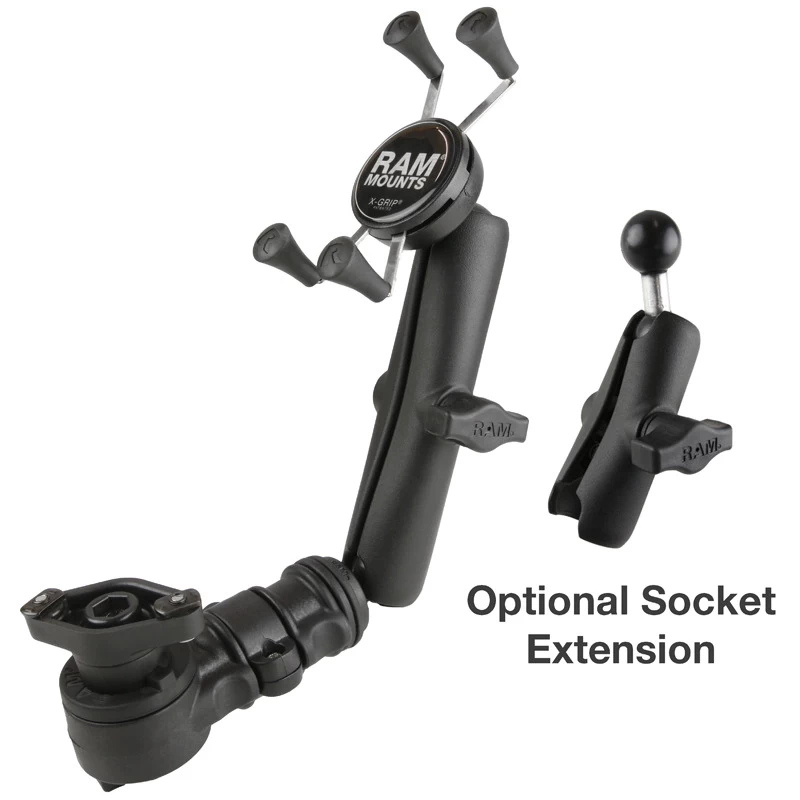

• Supports most any phone with or without a case at virtually any angle with optional ball extension
• Backed by a lifetime warranty

OVERVIEW

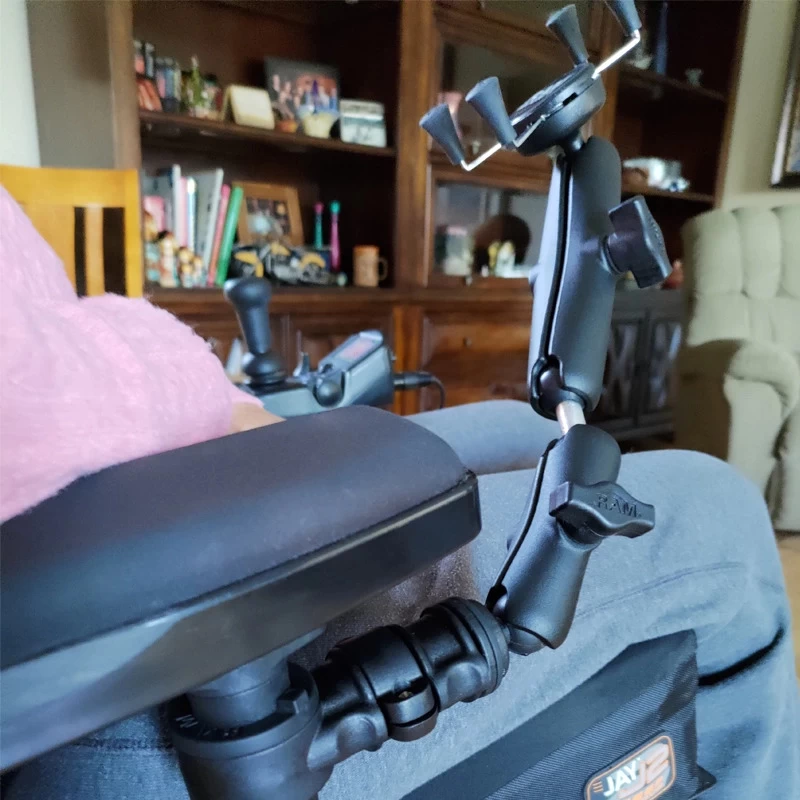

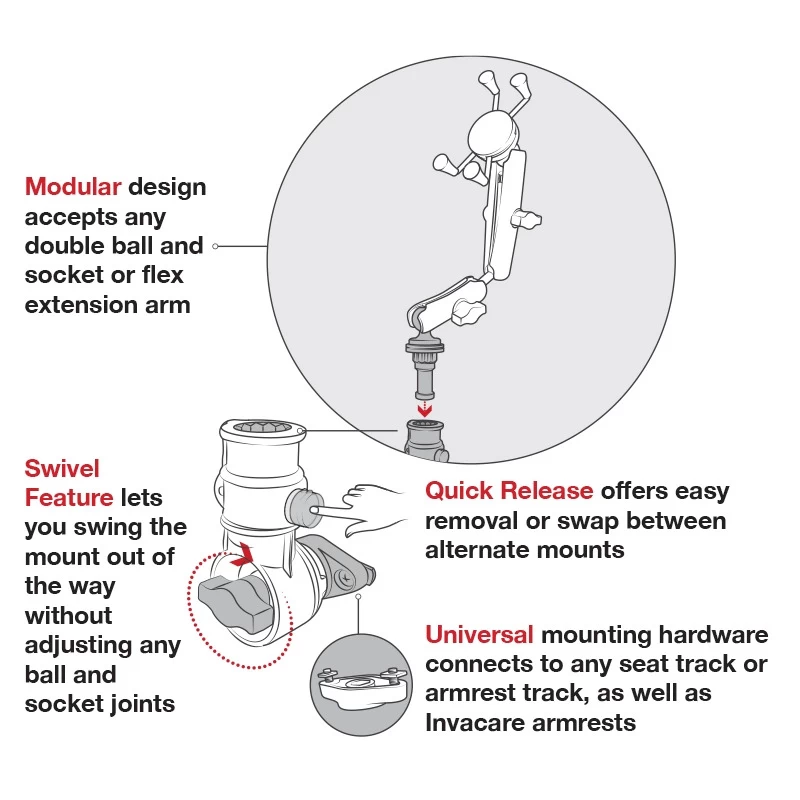

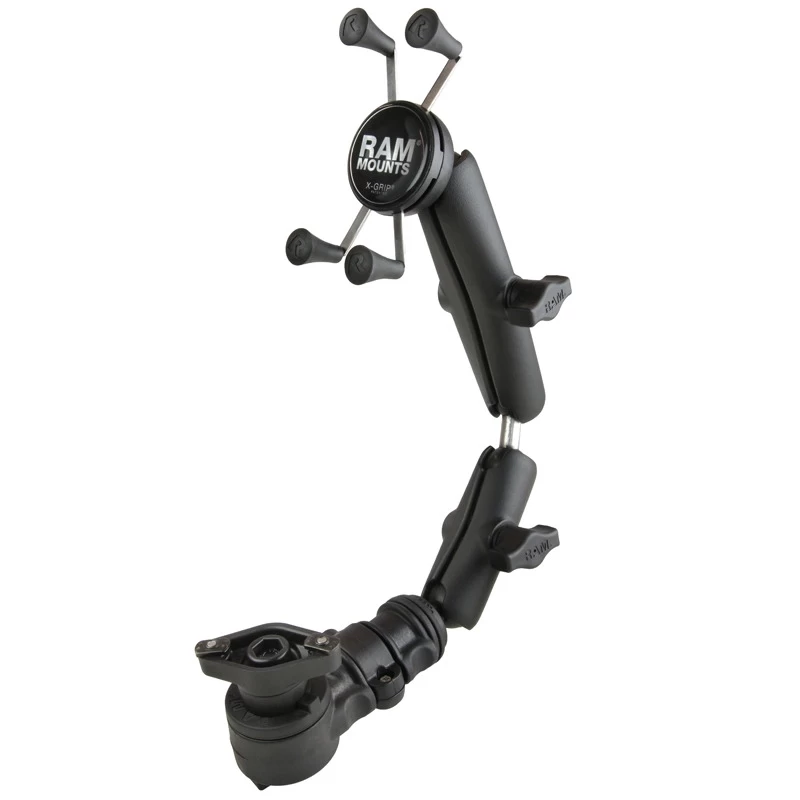

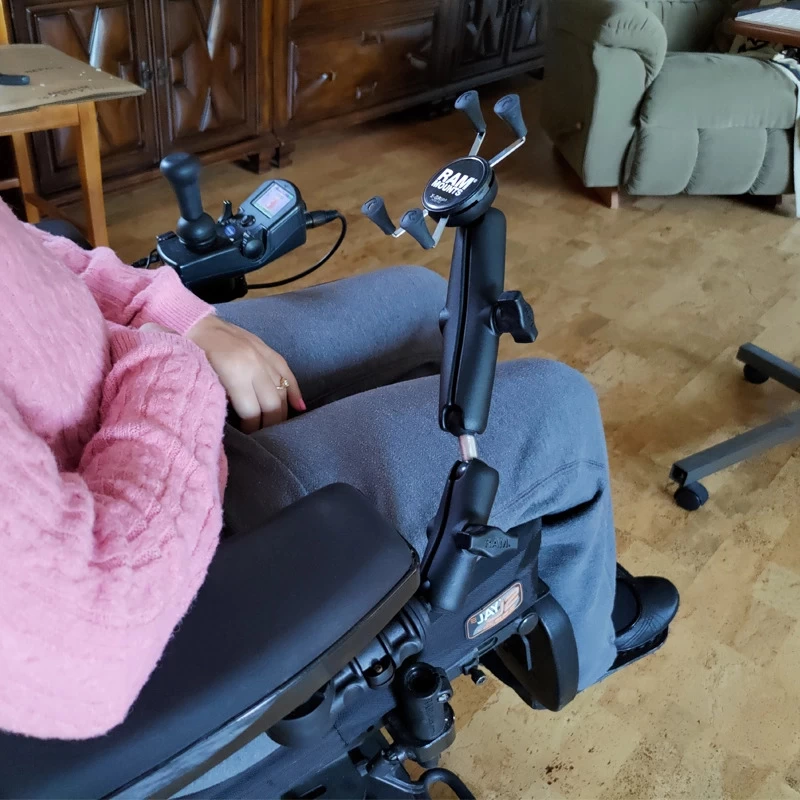

The RAM^® Phone Mount with Quick Release & Swivel is the perfect solution for mounting virtually any phone to a wheelchair armrest track or Invacare armrest. The system consists of the RAM^® X-Grip^® phone holder, double ball & socket extension arms, ball post adapter, and the RAM^® Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. The compact design of the RAM^® Universal Wheelchair mounting system stays within the chair’s armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM^® mounting compontents are backed by a lifetime warranty.

HARDWARE INCLUDED

Assembly Hardware

• (2) #10-32 T-Nuts
• (2) #10-32 Flat Weld Nuts
• (2) #10-32 x 7/16″ Machine Screws
• (2) #8-32 x 3/4″ Machine Screws
• (2) #8-32 Nylock Nuts
• (2) #8 Washers

HOLDER DIMENSIONS

Width Range: 1.875″ – 3.25″
Depth Range: .875″ max

T-BOLT DIMENSIONS

Large: .48″ x .95″
Small: .375″ x .593″

HOLE PATTERN

2-Hole AMPS: 1.912″

BALL/SOCKET SIZE

B Size (1″)

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite
