RAM MOUNTS RAM Handlebar U-Bolt Double Ball Mount

FEATURES

• Includes zinc-coated U-bolt base that accommodates rails from .5″ to 1.25″ in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders
• RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

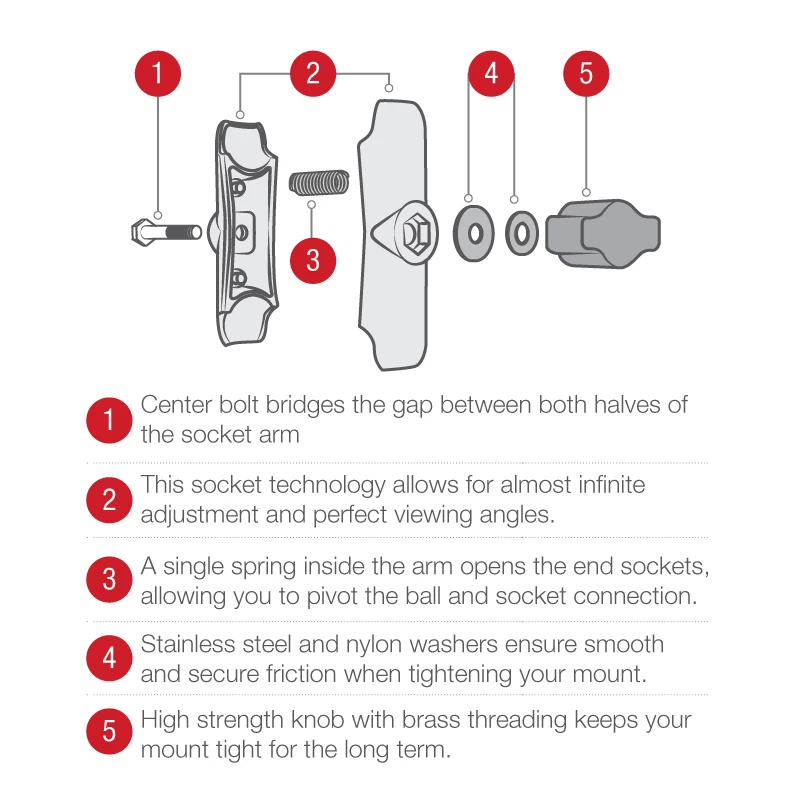

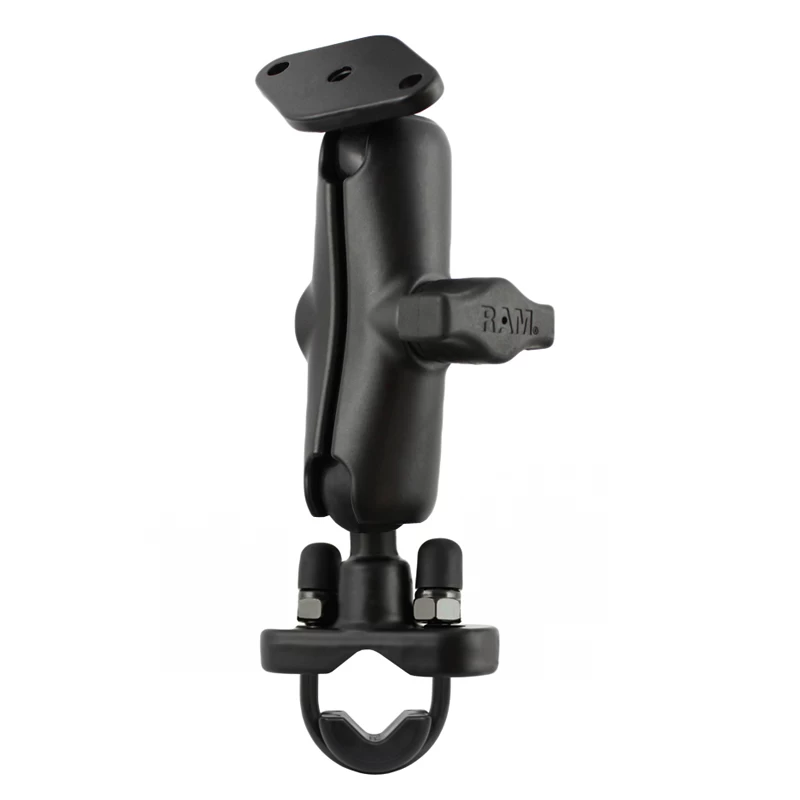

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM^® components. Included is hardware that will accommodate rails from .5″ to 1.25″ in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.



HARDWARE INCLUDED:

• (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
• (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• (2) 1/4″-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

CLAMP RANGE: .5″ – 1.25″ diameter

SOCKET-TO-SOCKET LENGTH: 3″

HOLE PATTERN: 2-Hole AMPS: 1.912″

 PLATE SIZE: 2.43″ x 1.31″

BALL/SOCKET SIZE:  B Size (1″)

WEIGHT CAPACITY:

• Standard Use: 2 lbs

• Heavy-Duty Use: 1 lb

MATERIALS:

Marine-grade aluminum
