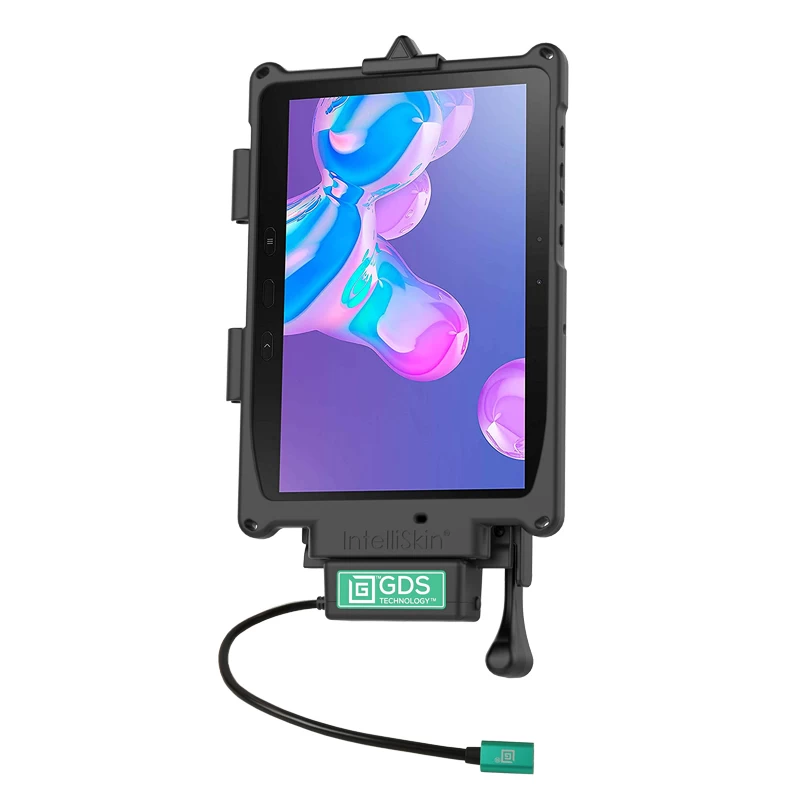

RAM MOUNTS RAM GDS Type-C Powered Vehicle Dock For IntelliSkin Next Gen Tablets

FEATURES

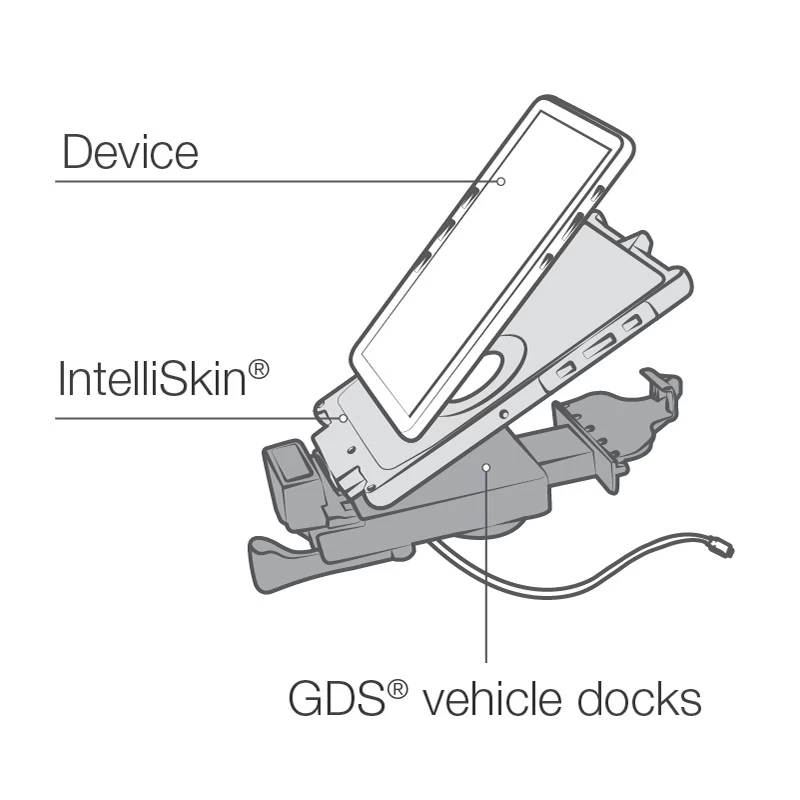

• Vehicle dock with integrated GDS® Technology™ offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen
• Type-C port provides high speed charging to the device

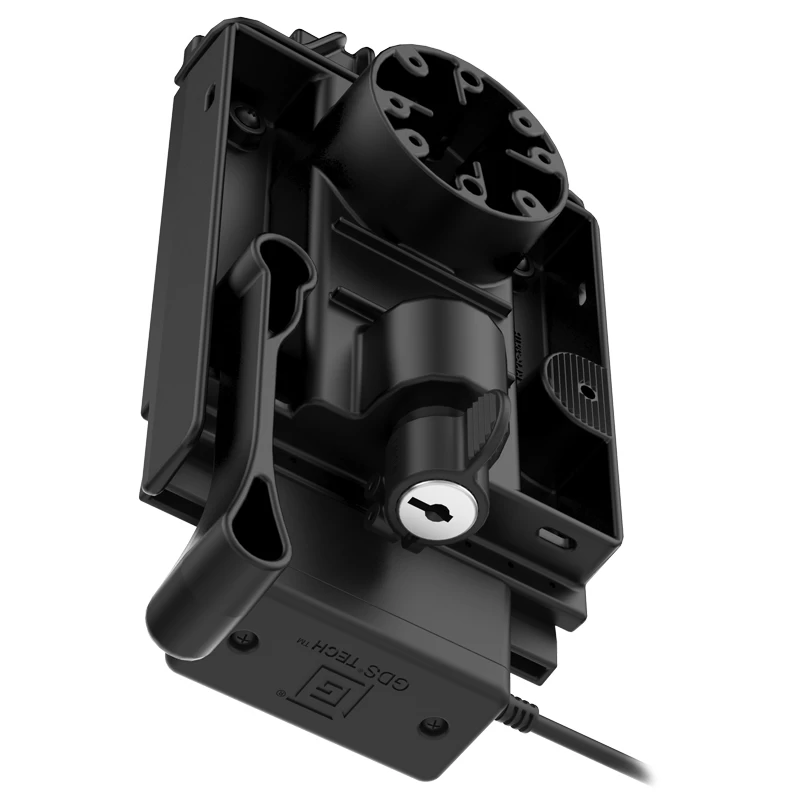

• Keyed lock for theft deterrence

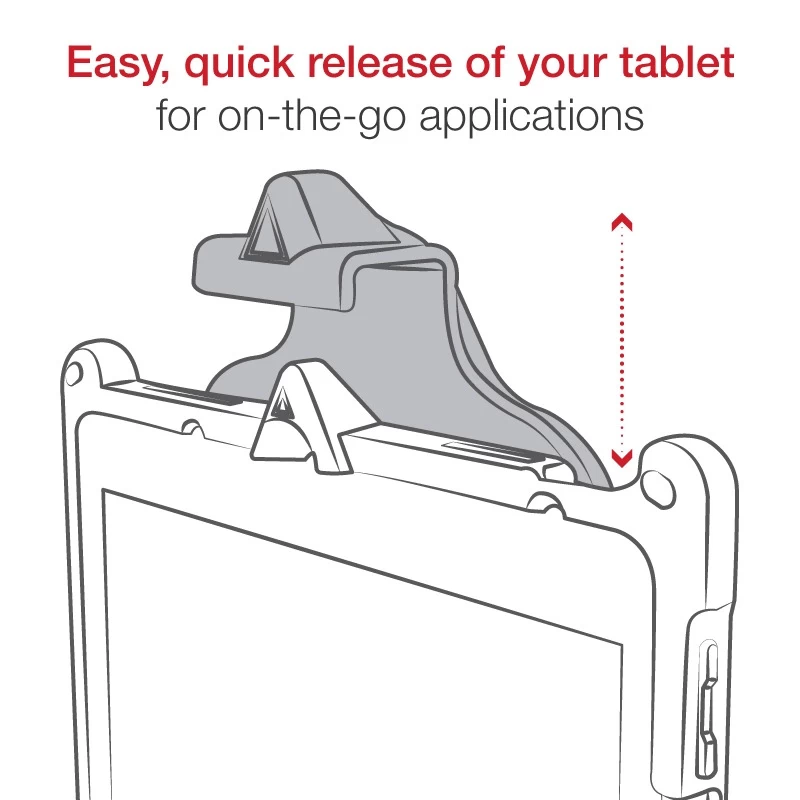

• Easy, quick release of your tablet for on-the-go applications
• Backed by a 3-year warranty

OVERVIEW

The USB Type-C locking vehicle dock for IntelliSkin^® Next Generation features GDS^® Technology^™ to enable high speed charging capabilities on the go. This spring-loaded, quick release cradle features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 8 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin^® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.

HARDWARE INCLUDED

Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8″ Sheet Metal Screws
(1) Cable Clamp
(2) Keys

HOLE PATTERN

4-Hole AMPS: 1.181″ x 1.496″

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V – 12V @ 3A

POWER OUTPUT

15W

INPUT CONNECTOR

USB Type-C

WEIGHT

1.49 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

•  Drop Test Passed



•
• This dock is not compatible with iPad Pro 12.9 IntelliSkin^® Next Gen.
