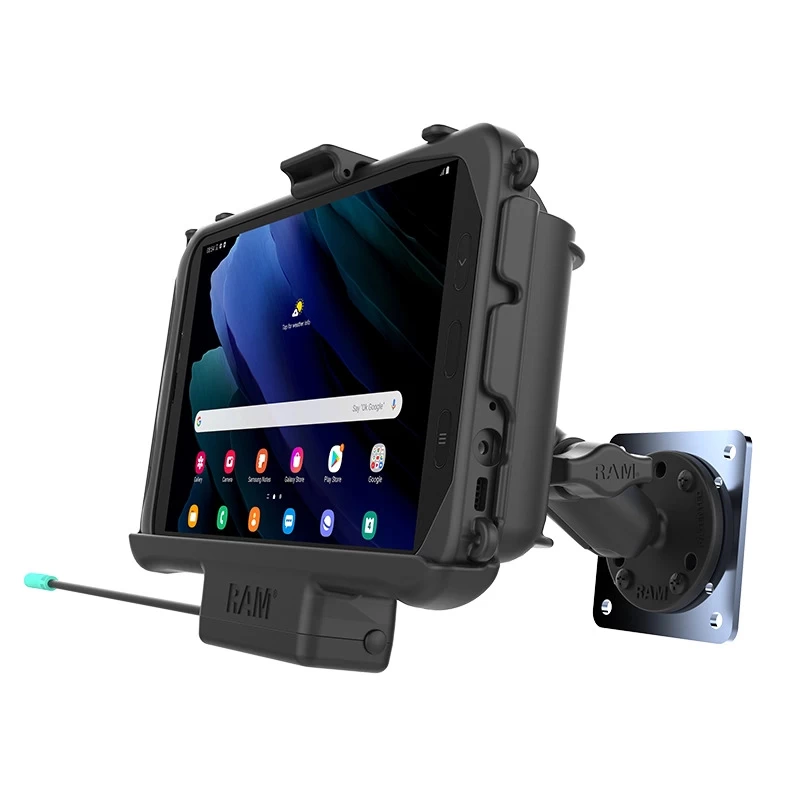

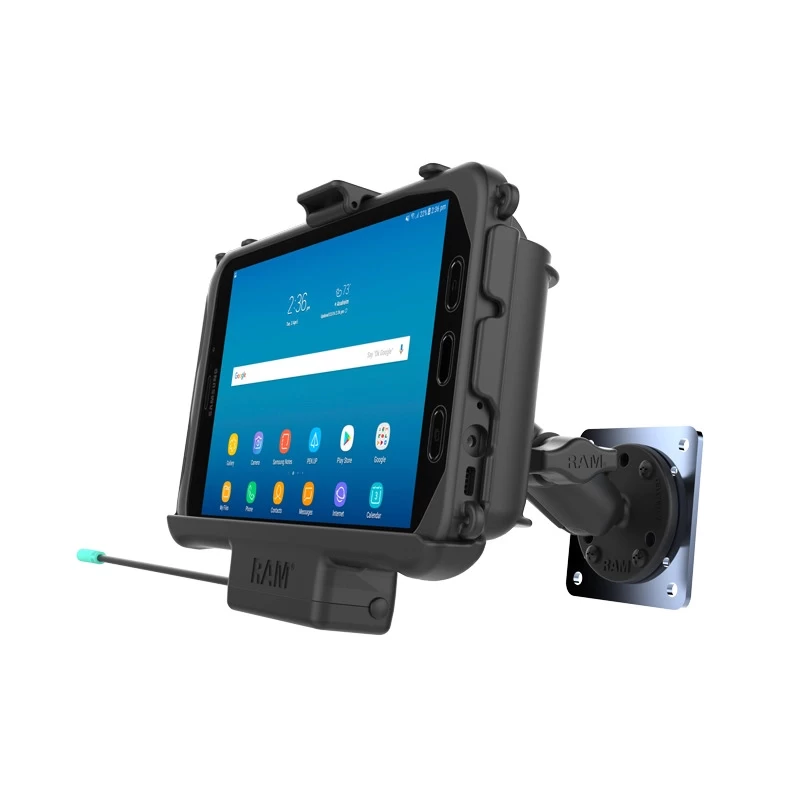

RAM MOUNTS RAM EZ-Roll’r Powered Mount For Samsung Tab Active3 And Tab Active2

FEATURES

• RAM® EZ-Roll’r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
• Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
• Backed by a 3-year warranty

OVERVIEW

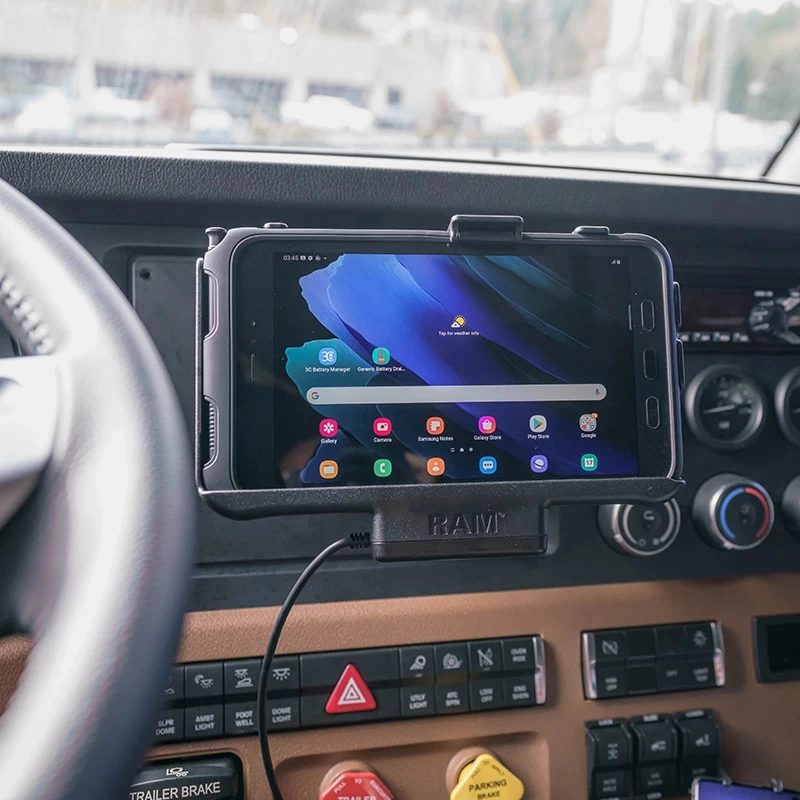

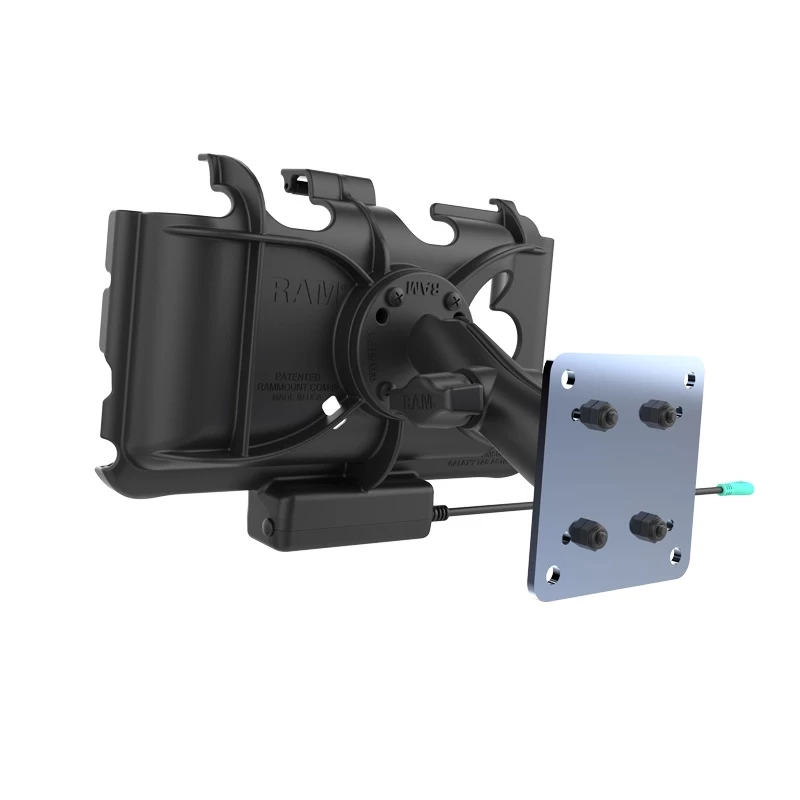

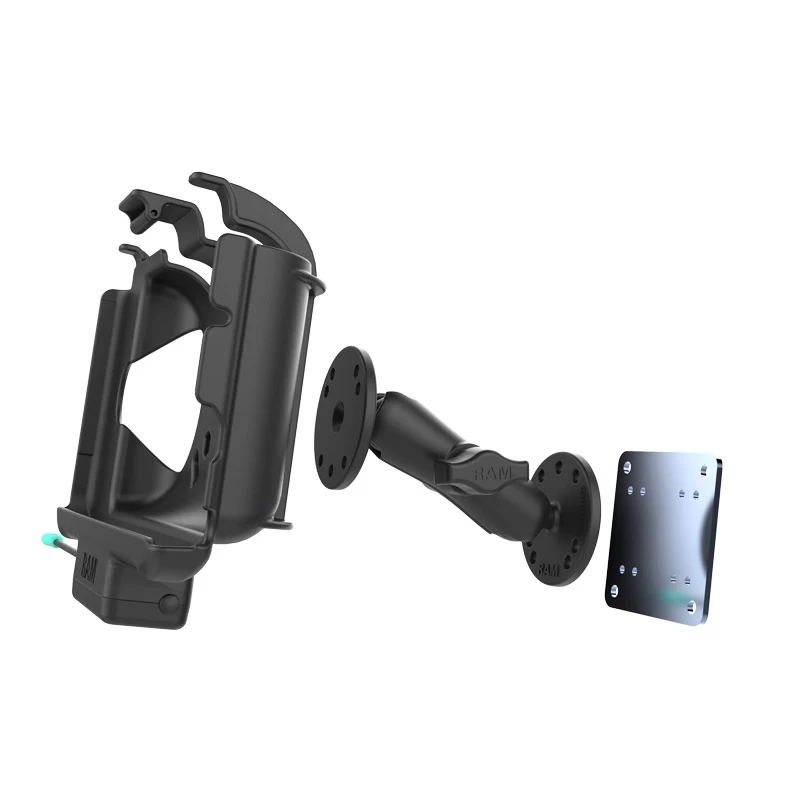

RAM^® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active3 and Tab Active2. Compatible with the Samsung OEM case as well as the RAM^® Skin^™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS^® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active3 and Tab Active2.

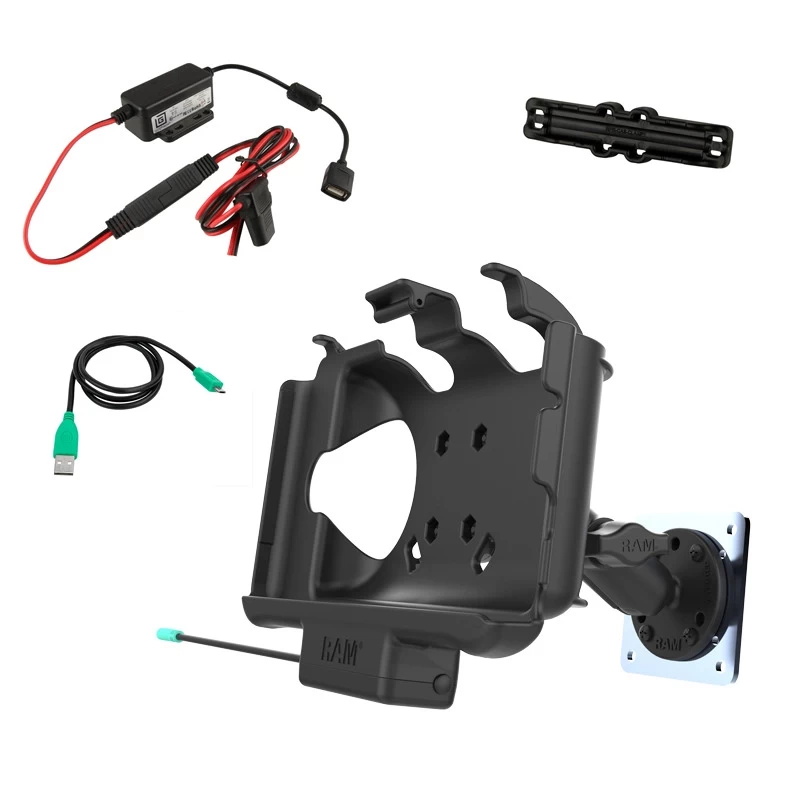

HARDWARE INCLUDED

Assembly Hardware
(1) 3″ x 3″ Steel Backing Plate
(4) #10-24 x 1″ Thread Locking Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
(1) mUSB Cable
(1) Hardwire Charger

SOCKET-TO-SOCKET LENGTH

3″

BALL/SOCKET SIZE

B Size (1″)

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Steel
Marine-grade alluminum
High strength composite

INPUT VOLTAGE

10V – 30V DC

OUTPUT VOLTAGE

5-9VDC

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.21 Meter

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Overvoltage/Load Dump Compliance: Meets SAE J-1113

CERTIFICATIONS

Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, e-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support



COMPATIBLE DEVICES

• Samsung

• Galaxy Tab Active3

• Galaxy Tab Active2
