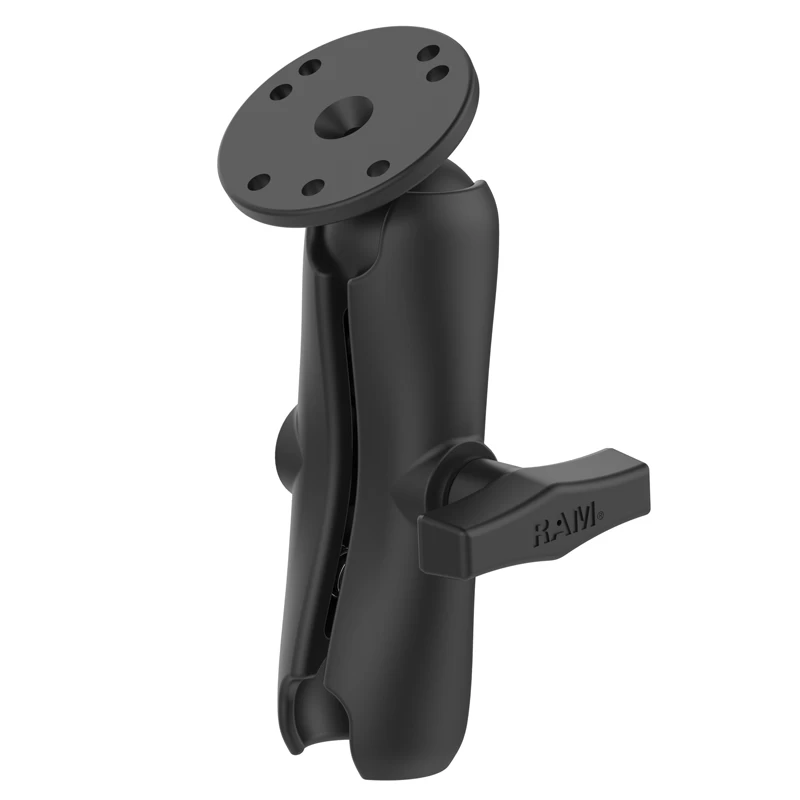

RAM MOUNTS RAM Double Socket Arm With Round 1.5″ Ball Plate

FEATURES

• 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern
• Includes C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

The RAM-103U consists of the 1.5″ diameter ball and socket system with one open socket end. This mount is designed to be used with any of the RAM mounting bases or cradles with a 1.5″ diameter rubber ball. The RAM-202U round base has a 1.5″ diameter rubber ball connected at right angles to a 2.5″ diameter base. The plate has pre-drilled holes in the base, including the universal AMPS hole pattern.

SOCKET-TO-SOCKET LENGTH

4.66″

HOLE PATTERN

4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter

PLATE SIZE

2.5″ Diameter

BALL/SOCKET SIZE

C Size (1.5″)

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
