RAM MOUNTS RAM 100x100mm VESA Plate With Ball RAM-D-246U

FEATURES:

• Square plate features the VESA hole pattern for connection to a wide variety of devices
• Included D size 2.25″ RAM® rubber ball allows for connection to any D size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW:

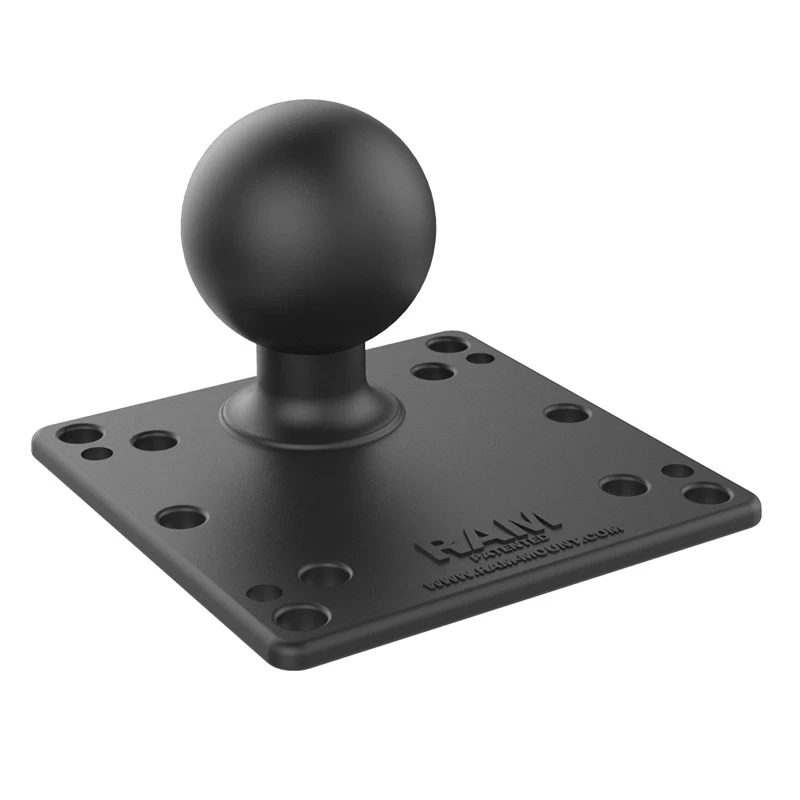

The RAM-D-246U consists of a 2.25″ rubber ball, connected to a 4.75″ square plate with 4x100mm holes and 4x75mm holes in each corner.

HARDWARE INCLUDED:

(4) .312″ x .187″ Shoulder Washers

HOLE PATTERN:

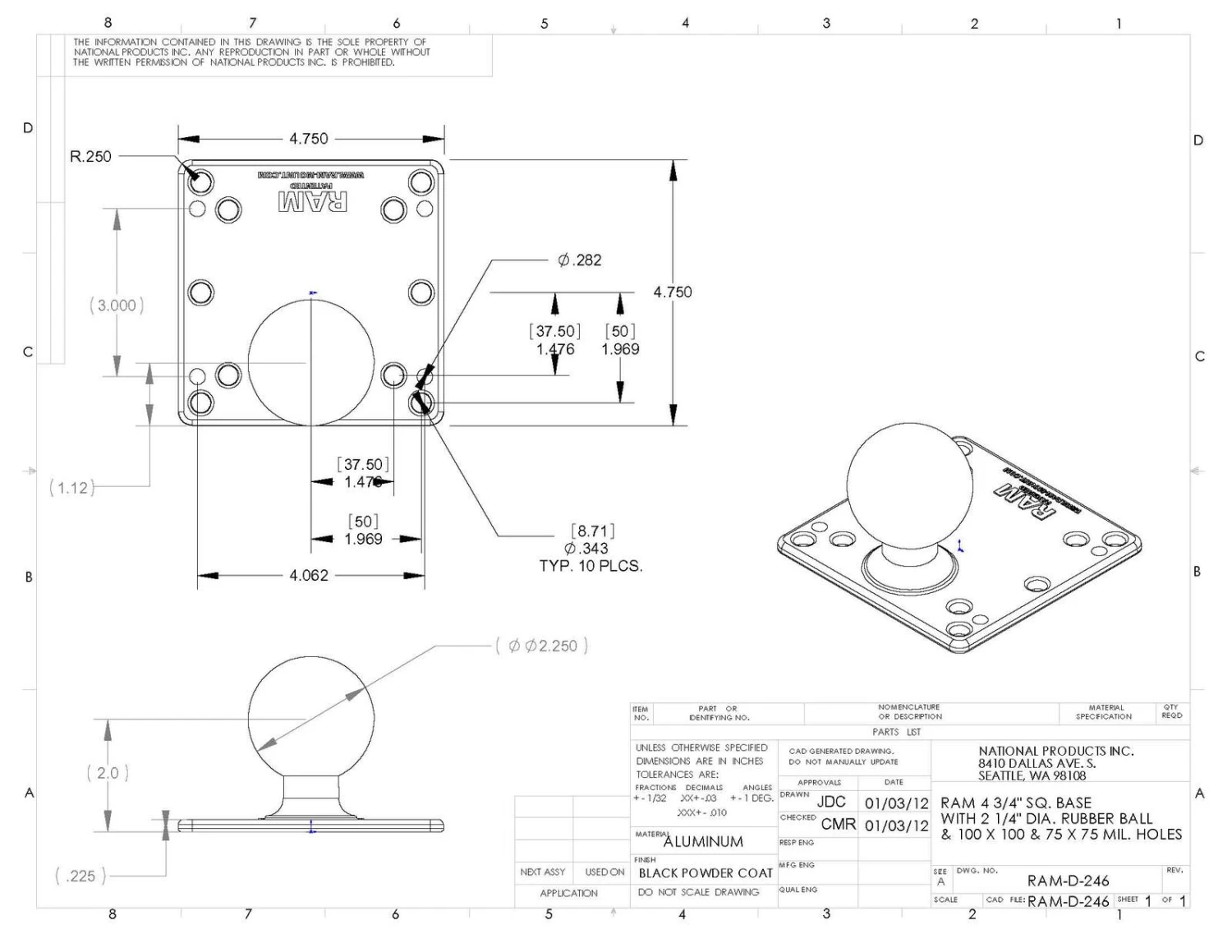

See Drawing

BALL/SOCKET SIZE:

D Size (2.25″)

WEIGHT CAPACITY:

• Standard Use: 6 lbs
• Heavy-Duty Use: 5 lbs

MATERIALS:

Marine-grade aluminum





RAM-D-246U
