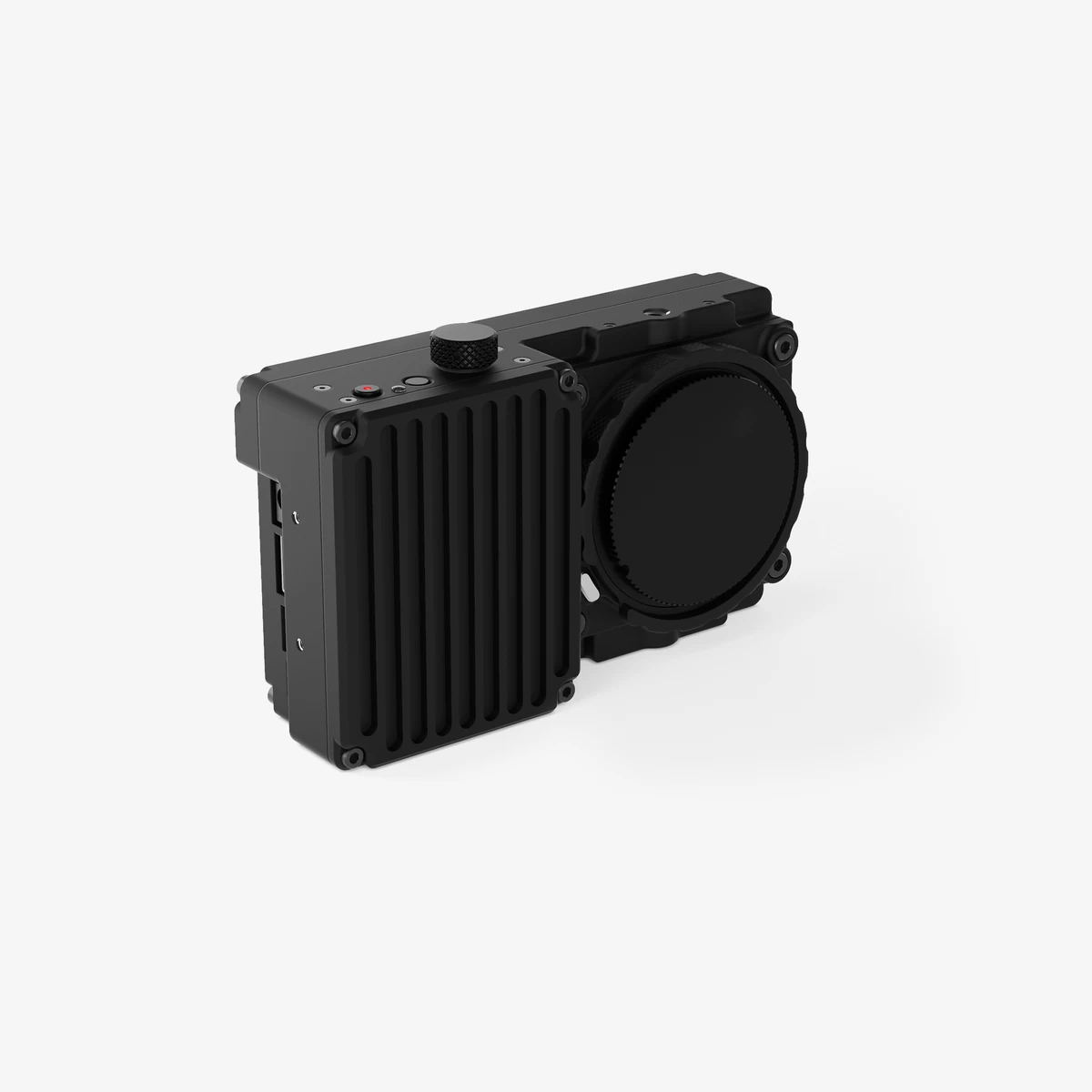

Freefly Systems WAVE Highspeed Camera 2TB

Freefly Systems WAVE highspeed camera 2TB ( 950-00105 )


Welcome to Wave!



Freefly designed Wave to be the most efficient high speed camera on the market. It’s small, light, and insanely-fast. The Wave is Freefly’s first camera, and we are excited to offer this amazing new product!

IMAGE SENSOR

• Format : S35
• Aspect Ratio : 4:3
• Pixel Size : 5.5μm x 5.5μm
• Native Resolution : 4096 x 3072
• Active Area : 22.53mm x 16.90mm
• Shutter Type : Global Electronic
• Native ISO :250

LENS MOUNT

• Standard Lens Mount : E-mount
• Removable : Yes
• Positive Locking : Yes
• Electronic : No

RECORDING

• Media : Internal SSD
• Media Size : 2TB
• Format : Compressed Bayer RAW
• Native Bit Depth : 10-bit
• Compression Ratio : 5:1 to 6:1

Resolutions / Frame Rates

• See Maximum Frame Rates
• Bit Rate : Maximum – 1.00GB/s (8.00Gb/s)
• 4096 x 2176, 422fps, 5.5:1 – 0.89GB/s (6.84Gb/s)
• 2048 x 1088, 1462fps, 5.5:1 – 0.74GB/s (5.92Gb/s)

Continuous Capture Time

• 4096 x 2176, 422fps, 1TB – 19min
• 4096 x 2176, 422fps, 2TB – 39min
• 2048 x 1088, 1462fps, 1TB – 23min
• 2048 x 1088, 1462fps, 2TB – 45min
• Others – Limited only by media size

POWER

• Battery Internal 11.1V, 2200mAh
• Run Time Standby 90min
• Recording (Max Rate) 60min
• Charge Time Powered Off 90min
• DC Input Voltage Operation 12-26V
• Charging to 100% 14-26V
• Power Consumption Standby 15W
• Recording (Max Rate) 19W
• Charging (Max) 24W

INTERFACE

• DC Input : Barrel Jack
• 5.5mm OD x 2.1mm ID
• HDMI Output : HDMI A (Full Size) 1080p30
• GPIO : 6-Pin JST GH Optically Isolated
• Start/Stop/Sync : UART (3.3V or 5.0V) API*
• USB : Type C (Reversible) USB 3.2 Gen1x1 SuperSpeed 5Gb/s

Wireless



WiFi 802.11b/g/n**



Bluetooth v4.2**



*Hardware capability, API details TBD.

**Hardware capability, no software support or mobile app available as of this release.



OTHER FEATURES

• Firmware Update : via USB-C
• Upgradeable Storage : Yes
• LCD : No
• Audio Recording : No
• Autofocus :No

PHYSICAL



• Dimensions w/ E-mount 150mm x 97mm x 47mm
• Weight w/ E-mount 716g
• Mounting Points 1/4-20 2: 1x Top, 1x Bottom
• M3 8: 2x per Side

ENVIRONMENTAL

• Operating Temperature : 0ºC to 40ºC
• Ingress Protection : IP52
• Maximum Acceleration : TBC
