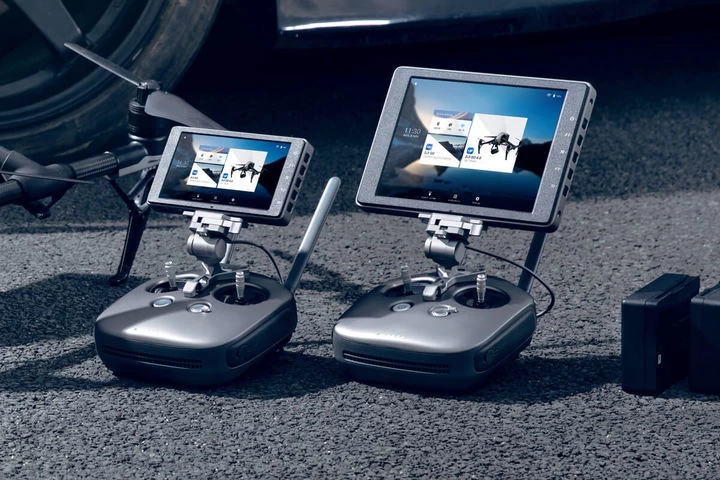

Created for outdoor aerial imaging, the CrystalSky monitor features an ultra-bright screen that is clearly visible in sunlight. It is designed from the ground up to work seamlessly with the DJI GO/DJI GO 4 app, giving camera operators total control.

A maximum 1000 cd/m² of brightness means the CrystalSky monitor is more than twice as bright as typical mobile devices. On-screen details are clear and sharp, and colors are vibrant, giving the quality needed to fine tune image composition.

A dedicated Sunlight Readability Enhancement mode is especially designed for processing the image in real-time to ensure more comfortable viewing under bright light.

SMOOTHER VIDEO DISPLAY

The CrystalSky monitor optimizes video decoding in real-time. Due to limitations in software access on smartphones and tablets, video decoding in other smart devices is less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. The CrystalSky monitor’s optimized decoder provides smooth, real-time video with minimal latency.

CUSTOMIZED SYSTEM AND DJI GO/DJI GO 4

A newly designed operating system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky monitor is able to offer optimum performance at all times. Its embedded DJI GO/DJI GO 4 app provides full access to all app features, including aircraft parameter adjustment, camera control, footage management and playback. And using offline maps, they can be kept available even if going out of Wi-Fi reach.

POWER SUPPLY

A two-cell 4920 mAh secondary external battery gives the CrystalSky monitor a longer operating time than comparable mobile devices. It supports quick charge, and controls its discharge rate even in low temperatures. It has a maximum operation time of 4-5 hours.

DUAL SD CARD SLOTS

Equipped with dual MicroSD Card slots, the CrystalSky monitor’s back-up storage can be extended, and card-recorded footage can be played back directly on the monitor. Using editors built in to the apps, high-quality edits can be made quickly and instantly shared to social media. The CrystalSky monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30 fps and 60 fps respectively. These videos can also be output through its HDMI port. Resolution is 2048 x 1536.

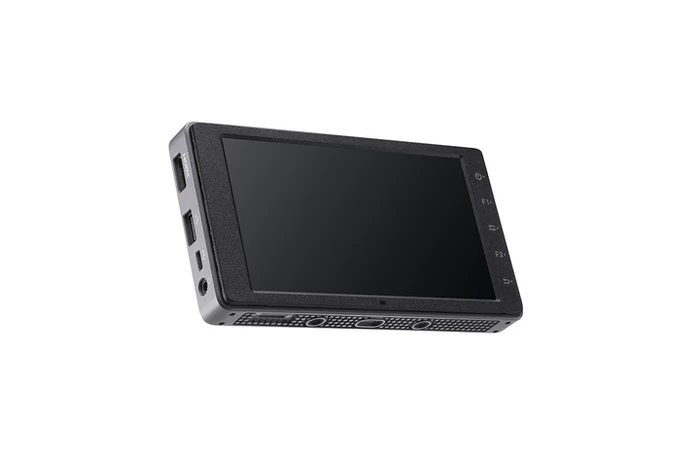

PORTS AND NETWORK

The CrystalSky monitor’s HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it’s also compatible with 4G dongles and USB storage through its USB-A port.

When connected to the internet, the CrystalSky monitor gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronization and more. File sizes are optimized as much as possible to minimize mobile data demands.

Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.

EXTREME TEMPERATURE OPTIMIZED

Most smart devices are designed to operate in common temperature ranges. The CrystalSky monitor’s external battery has been designed for more extreme temperatures. It is able to operate in as low as -20°C and, with its internal cooling system, functions normally in temperatures as high as 40°C.

DJI SYSTEM COMPATIBILITY

The CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series, and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controller USB port, via the optional mounting bracket.

But CrystalSky attaches to the Cendence Remote Controller without an additional mounting bracket.

And the CrystalSky does NOT ship with a battery charger, only a charging hub. It requires your drone’s charger to charge its batteries (see below for compatible chargers)

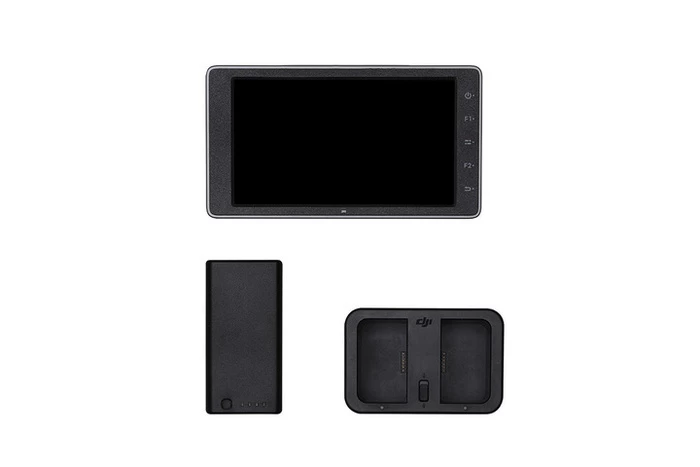

IN THE BOX

7.85″ High Brightness CrystalSky Monitor
2 x WB37 4920mAh Intelligent Battery for CrystalSky and Cendence
CrystalSky/Cendence Battery Charging Hub WCH2

Tips:

A CrystalSky – Remote Controller Mounting Bracket is required when attaching a CrystalSky monitor to Inspire series, Phantom 4 series, Phantom 3 Professional, Phantom 3 Advanced, or Matrice series remote controllers.
Cendence remote controllers come with a CrystalSky mounting bracket.
CrystalSky does not include a charger. Read below to learn more about compatible chargers.

COMPATIBILITY
